Bifold Doors

Possibilities Unfold

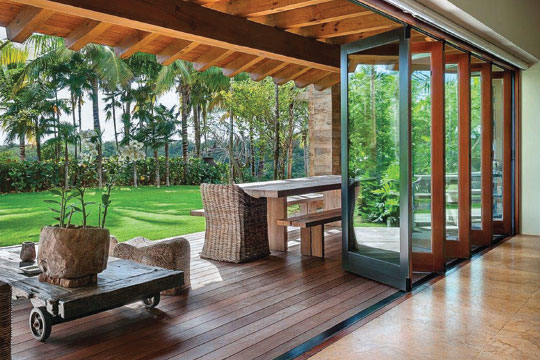

Possibilities unfold with Loewen Bifold Doors, an expansive new addition to the Loewen product line. Bifold Doors virtually disappear, creating stunning transitions to the fresh air and spaciousness of outdoor living. When closed, Bifold Doors provide privacy and protection while allowing unobstructed views.

Highlights

  • Up to 16 panels (52′) wide (eight panels folding in each direction)
  • Individual panels up to 39″ standard width; custom sizes available
  • Panels stack to the exterior, maximizing interior floor space
  • No requirement for “pocket” walls
  • Metal clad track cover and frame cladding match clad door panels
  • Standard sill with built in drainage system
  • All panels are top hung, and the frame is fastened directly into the lintel, providing smooth operation

3-inch Narrow Stile options available for a contemporary look:

View Information Sheet →

Standard Features

  • Natural Douglas Fir interior (no visible finger joints)
  • 6 9/16″ (166 mm) jamb construction
  • 4 mm Low E insulated tempered glazing
  • Multi-point locking hardware and easy operating flush bolts
  • Concealed intermediate guide and sill drainage system
  • Extruded aluminum cladding in a variety of standard colors, primed wood or clear Fir exterior
  • Flexible weatherstrip system

For more information on sizes, drawings and options:

View Our Technical Guide→

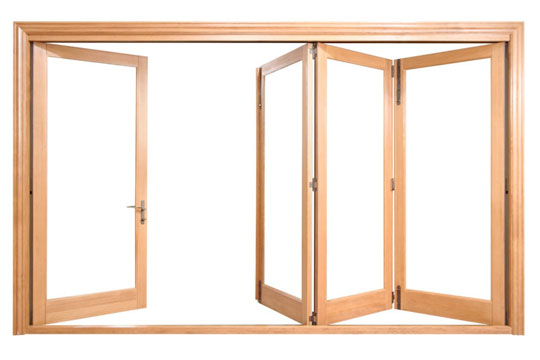

Panels

  • Standard full glass panels, wood or metal clad
  • Optional wood raised panels
  • Optional clad flat panels
  • Optional mid-rails

View Metal Clad Colors & Finishes →

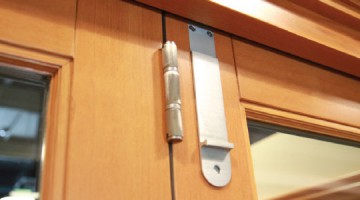

Hardware

Verona Handle

Dallas Handle

Twin Point Lockset
