Sliding Patio

Loewen Sliding Patio doors can open up the walls in your home to new possibilities. For safety, security, and ease of operation, Loewen uses laminated sash construction, thick tempered safety glass, and smooth tandem rollers.

Sliding Patio

Effortless operation and superior security.

Designed to open up walls to new possibilities, our Sliding Patio doors combine ease of operation with total peace of mind. Every door features a built-in anti-panel lift device and a European multipoint lock system with stainless steel components for long-lasting corrosion resistance. Supported by smooth tandem rollers and laminated sash construction, these doors create a secure, high-performing seal in your building envelope without sacrificing the fluid transition between indoor and outdoor spaces.

Sliding Patio

Our Offering

O, XO, OX, XOX, and OXXO Configurations
Integrated Sliding Screen
2-¼” Panels
Standard Stile & Rail or French Stile and Rail Configurations

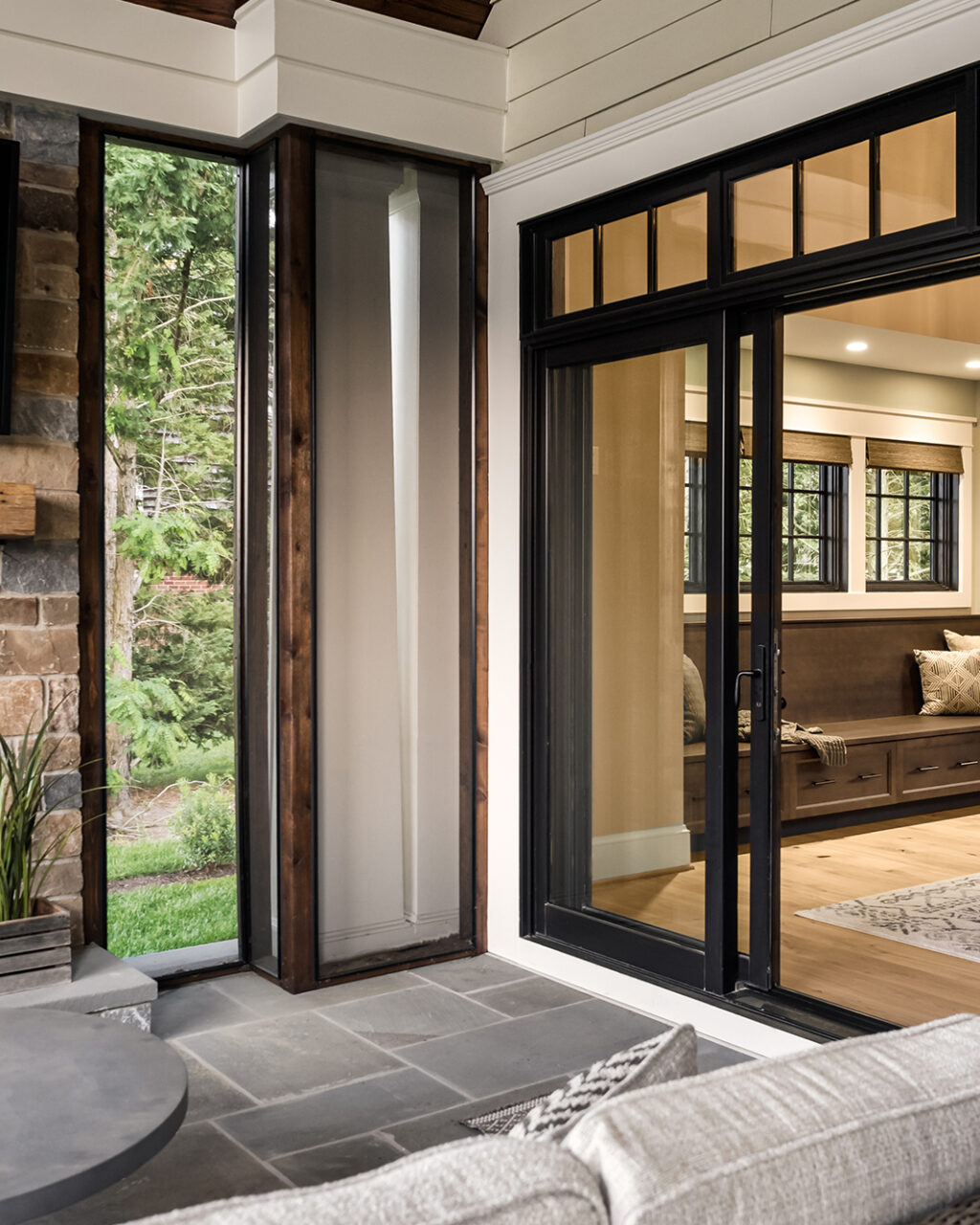

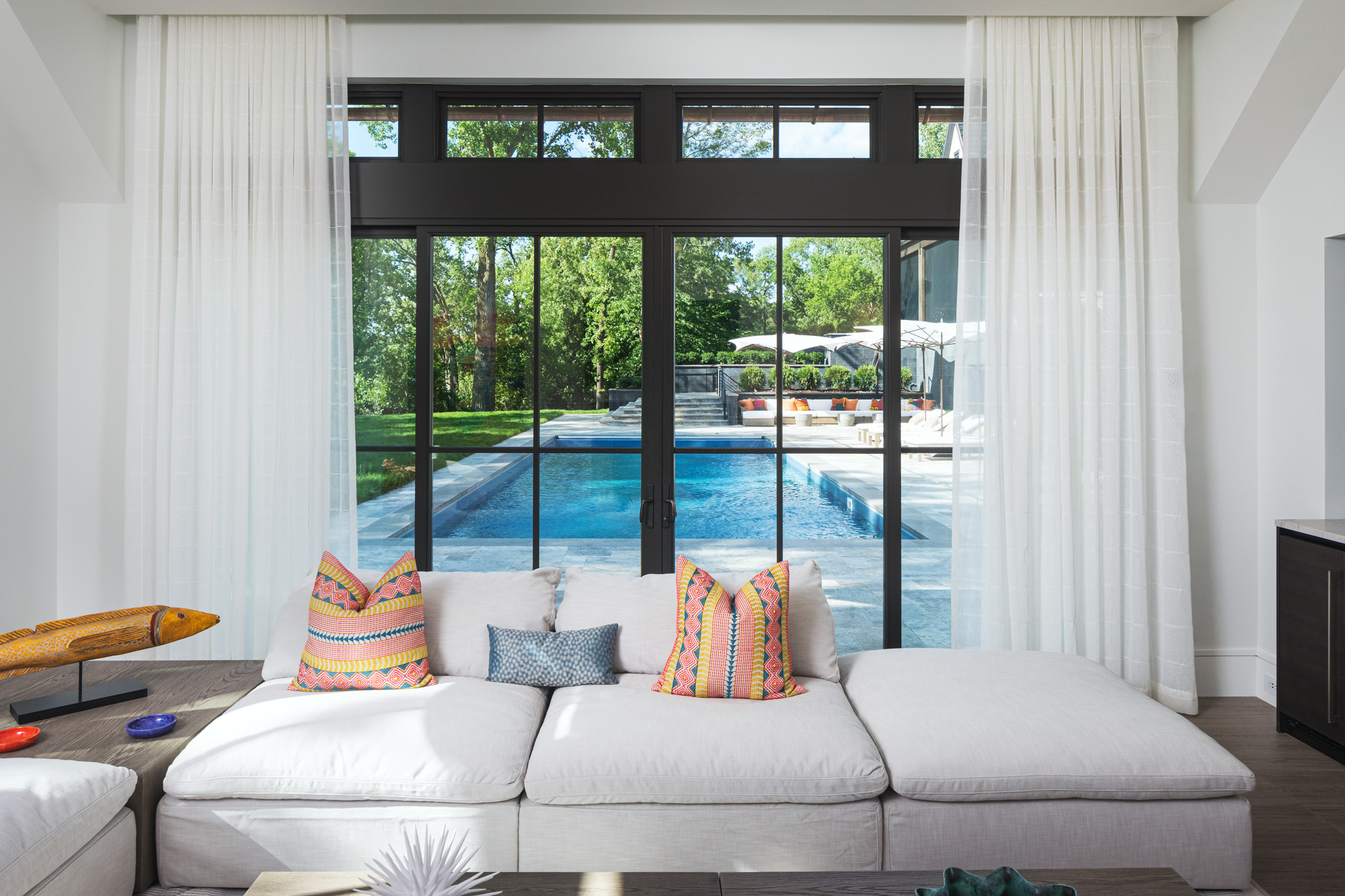

Direct-mulled Transoms

Sliding Patio

Effortless operation and superior security.

Sliding Patio

Our Offering

O, XO, OX, XOX, and OXXO Configurations
Integrated Sliding Screen
2-¼” Panels
Standard Stile & Rail or French Stile and Rail Configurations
Direct-mulled Transoms

PATIO DOORS - Showroom Walkthrough

Features & Benefits

Adjustable Flange Location

This door can be installed into 4-9/16" walls, 6-9/16" walls, or larger, making it ideal for renovations and punched openings.

Integrated Sliding Screen

The integrated screen provides insect control in wall thicknesses as small as 4-9/16".

2-1/4" Panels

These panels deliver high-impact performance, support true triple glazing, feature vertical grain Douglas Fir skins for a clean interior look, and offer standard or French stile and rail options to suit various design styles.

Robust Mulling Options

Loewen Sliding Patio doors can be mulled directly to transoms, eliminating the need for intermediary structural considerations.

Robust Sizes and Configurations

O, XO, OX, XOX, and OXXO configurations make this a very flexible offering and the large sizes make this door a value-engineered alternative to other sliding door types.

Specification Highlight

SIZING

Max Standard 6’x10’ panels,
19’ 8‑¼” × 10’ 3‑⁷/₁₆” frame (OXXO)

PERFORMANCE BRIEF

Performance Grade up to PG70

Common U-Values .28 (Dual) & .22 (Triple)

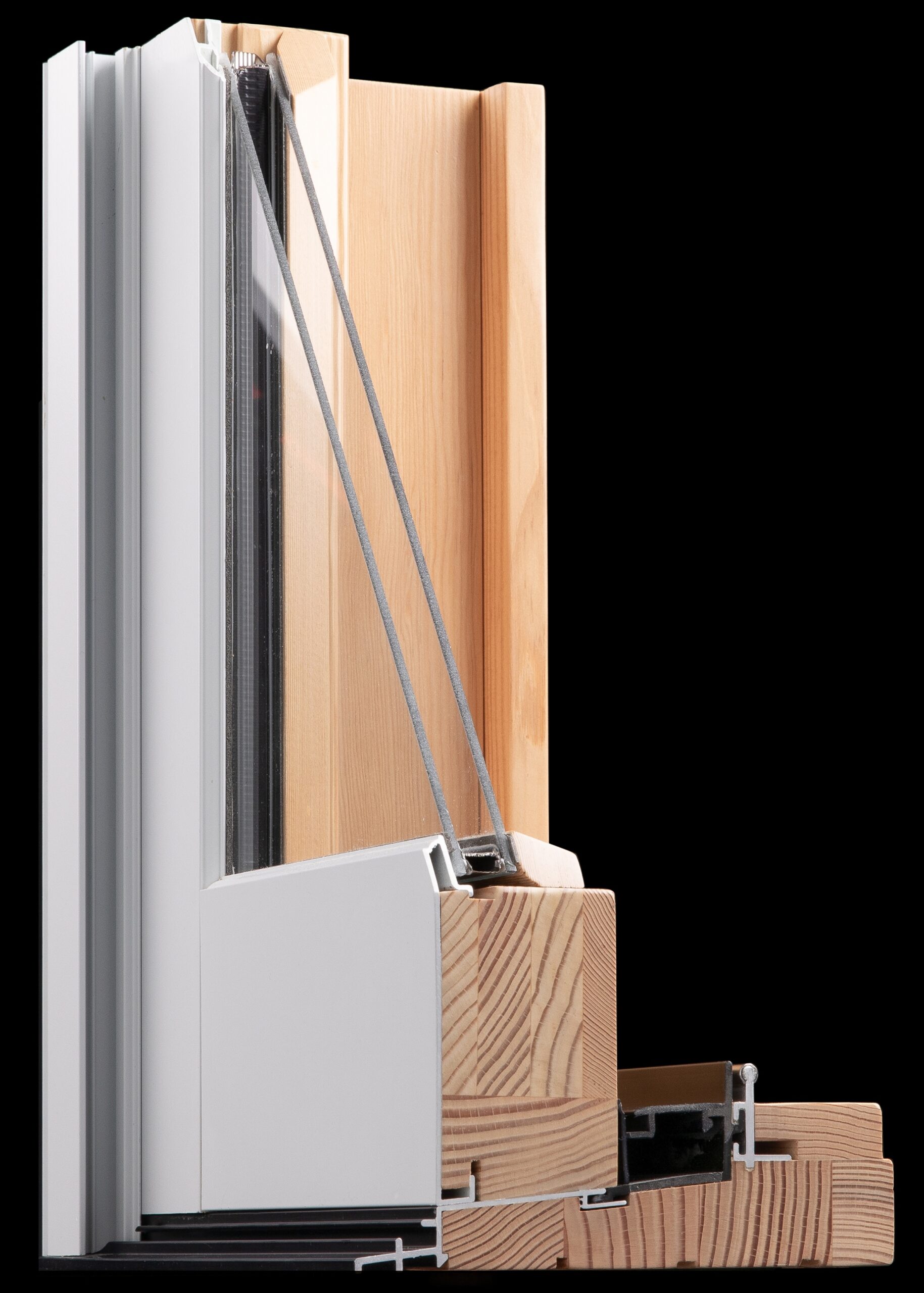

Fundamentals

Our highly customizable product offering is engineered for uncommon strength and durability.

Integral Nailing Flange (12)

Sash Edge (11)

Authentic Joinery (10)

Dual Glazing (9)

Thermal Separation (8)

Putty Glazing Stop (7)

Venting Channel (6)

Lamination (5)

Thermal Break (4)

Coastal Douglas Fir (3)

Extruded Aluminum (2)

Bronze Anodized Aluminum Sill (1)

12. Integral aluminum nailing flange ensures a secure installation and added weather protection.

11. Sash edge provides a finished look and integrates beautifully with Simulated Divided Lite (SDL) bars.

10. Authentic stile and rail construction with mortise and tenon sash corner joinery for structural stability.

9. 1/2" airspace is the optimum performance-spec when using an Argon Gas fill.

8. No metal-to-glass contact improves energy efficiency.

7. Square, putty, and ogee glazing stops all available as standard profiles.

6. Hidden venting channel allows condensation to escape, increasing seal and sash life.

5. Laminated wood components for enhanced structural stability and a tight weather seal.

4. An integrated thermal break for increased thermal performance.

3. Coastal Douglas Fir for strength and rigidity.

2. Extruded aluminum cladding is intricately detailed, withstanding serious impact without sustaining damage.

1. Thick extruded aluminum sill in our standard bronze anodized finish offers a rich matte look while increasing resistance to abrasion and corrosion.
