Products > Windows

Awning / Casement

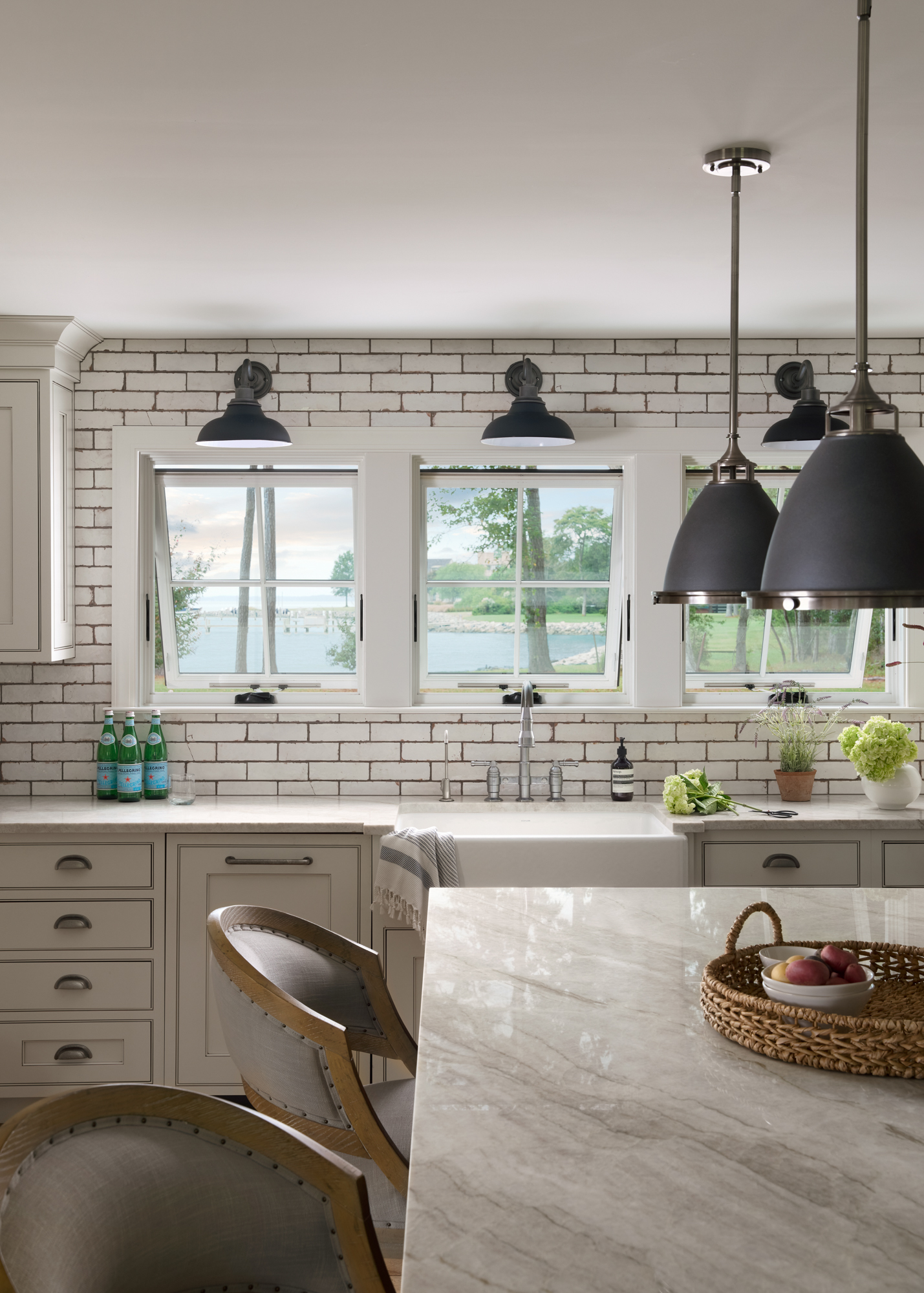

Our awning and casement windows are renowned for their ultra smooth operation and industry-leading performance. We've carefully considered this product line, ensuring we have configurations for every architectural scenario.

Awning / Casement

Incredibly smooth operation and exceptional performance.

Ultra-smooth operation and industry-leading performance have made this product one of our most popular offerings. These windows provide your home with meaningful ventilation, but close so tightly they create a seal in your building envelope that is equally meaningful. We also have an awning or casement for any design scenario; many of our awnings and casements adorn the most modern architectural projects, and our Mission® casements are sometimes configured to look like Double Hung windows.

Awning / Casement

Our Offering

  • Pushout & Rotogear Awnings
  • Pushout & Rotogear Casements
  • Pushout French Casements
  • Fixed Casements
  • Fixed Casements (Rotogear-Match)
  • Fixed Casements (Pushout-Match)
  • Square and Radius-Top Shapes
  • Automated Awnings
  • Mission® Casements
  • Aluminum, Retractable, and Inswing Screens

Awning / Casement

Incredibly smooth operation and exceptional performance.

Ultra-smooth operation and industry-leading performance have made this product one of our most popular offerings. These windows provide your home with meaningful ventilation, but close so tightly they create a seal in your building envelope that is equally meaningful. We also have an awning or casement for any design scenario; many of our awnings and casements adorn the most modern architectural projects, and our Mission® casements are sometimes configured to look like Double Hung windows.

Awning / Casement

Our Offering

  • Pushout & Rotogear Awnings
  • Pushout & Rotogear Casements
  • Pushout French Casements
  • Fixed Casements
  • Fixed Casements (Rotogear-Match)
  • Fixed Casements (Pushout-Match)
  • Square and Radius-Top Shapes
  • Automated Awnings
  • Mission® Casements
  • Aluminum, Retractable, and Inswing Screens

AWNING & CASEMENT WINDOWS - Showroom Walkthrough

Push Out Hardware

TILT-TURN WINDOWS - Showroom Walkthrough

AWNING & CASEMENT WINDOWS Corner Section Analysis

Features & Benefits

Mortise & Tenon Joinery

Our exceptionally tight joinery keeps our sashes consistently square without the need for adhesives.

One-Piece Weatherstrip

A continuous piece of weatherstrip means no potential failure points at the corners, the single joint is thoughtfully placed at the middle of the head. This also adds to the high-quality feel of the sash operation.

Dual & Triple Sashes

Our two sash options allow for multiple glazing options including our True Triple glazing or Tranquility glazing.

All-Metal Handles & Covers

All handles and levers are made with the highest quality materials. There’s no interaction with plastic components when operating the window.

Stainless Steel Hardware

We offer stainless-steel hardware options for product installed in coastal regions.

Washability & Egress Hinges

Our Washability hinge allows easy access to the exterior of your sash, facilitating easy cleaning from inside your home. Our Egress hinge maximizes the opening, meaning even some of our smaller windows meet egress requirements.

Blemish-Free Finishings

Concealed fasteners minimize exposed nail holes to allow for blemish free solid-wood moldings.

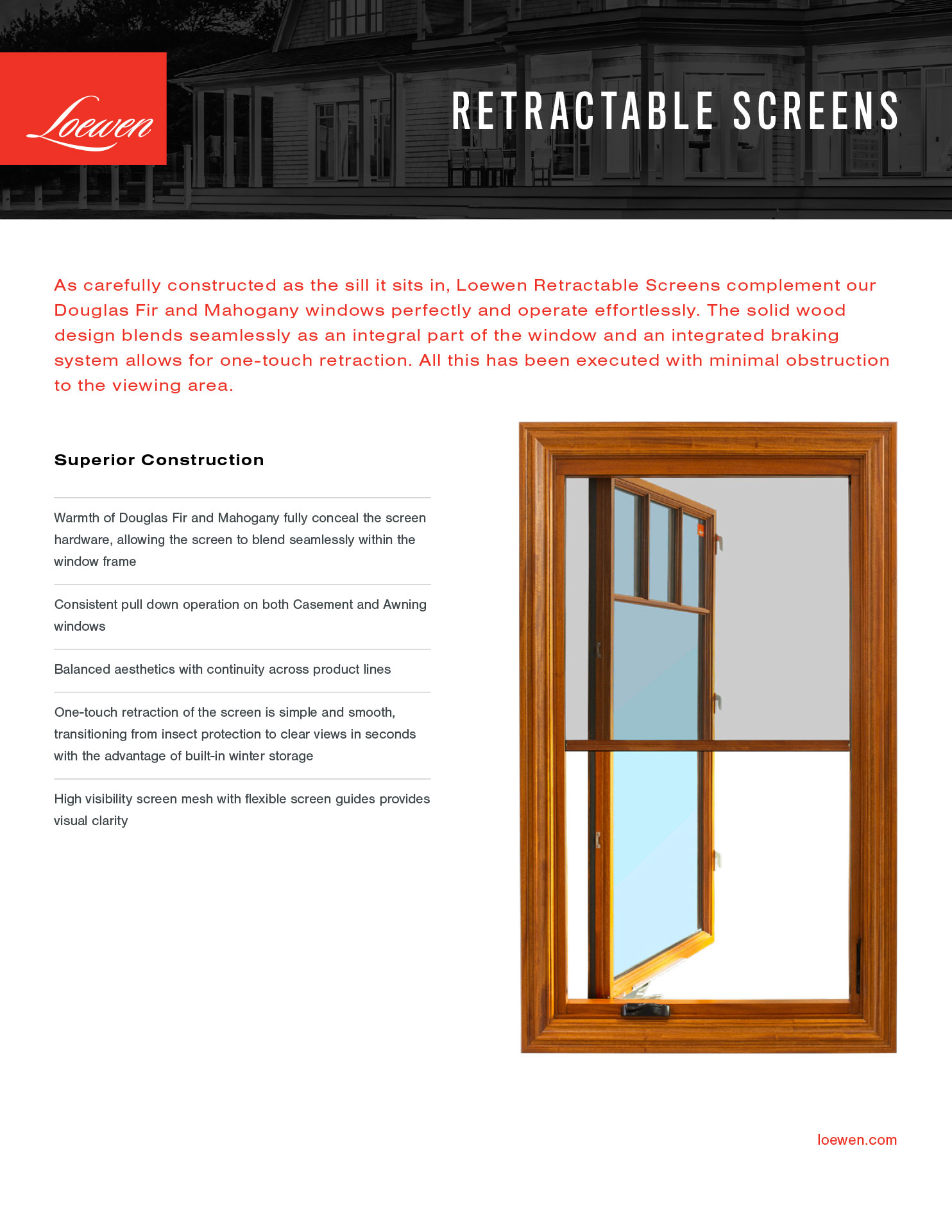

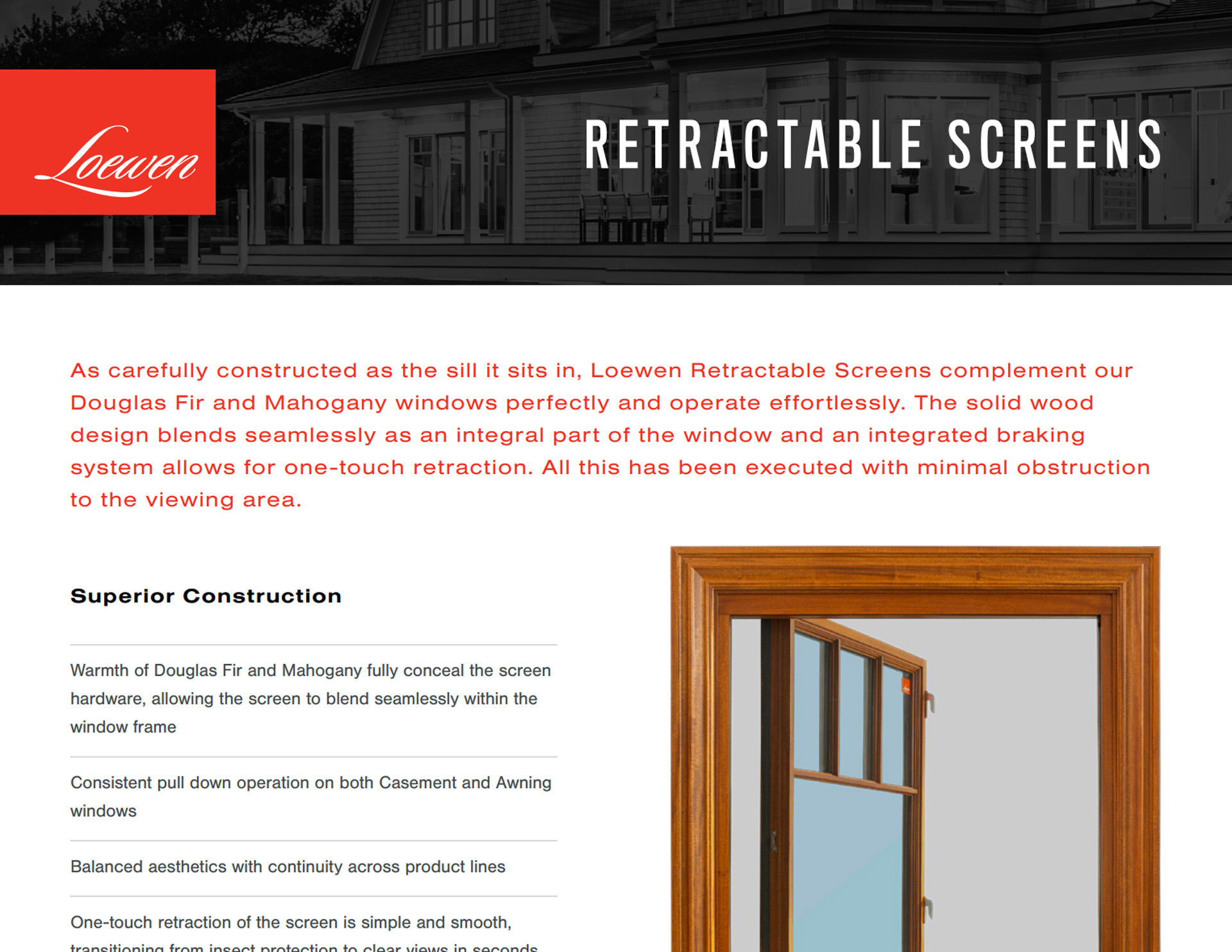

Sleek Retractable Screens

This minimalist screen adds convenience without compromising style. Our retractable screens also don’t encroach into the Day Light Opening or add any dimension to our 4-9/16” (116mm) jamb depth.

Mission Sash

The taller bottom rail makes this sash a great option for mission-style homes. Mission casements can simulate the look of our Double Hung windows, providing classic aesthetics with modern egress.

Specification Highlight

Sizing

Max Standard 35‑7/16” x 82‑11/16” or
27‑9/16” x 94‑1/2”
Min Standard 15‑3/4” x 15‑3/4”

Performance Brief

Performance Grade Up to PG75
Common U-Values .28 (Dual) & .19 (Triple)
Certified Wind Zone 4 & High-Velocity Hurricane Zone (HVHZ)

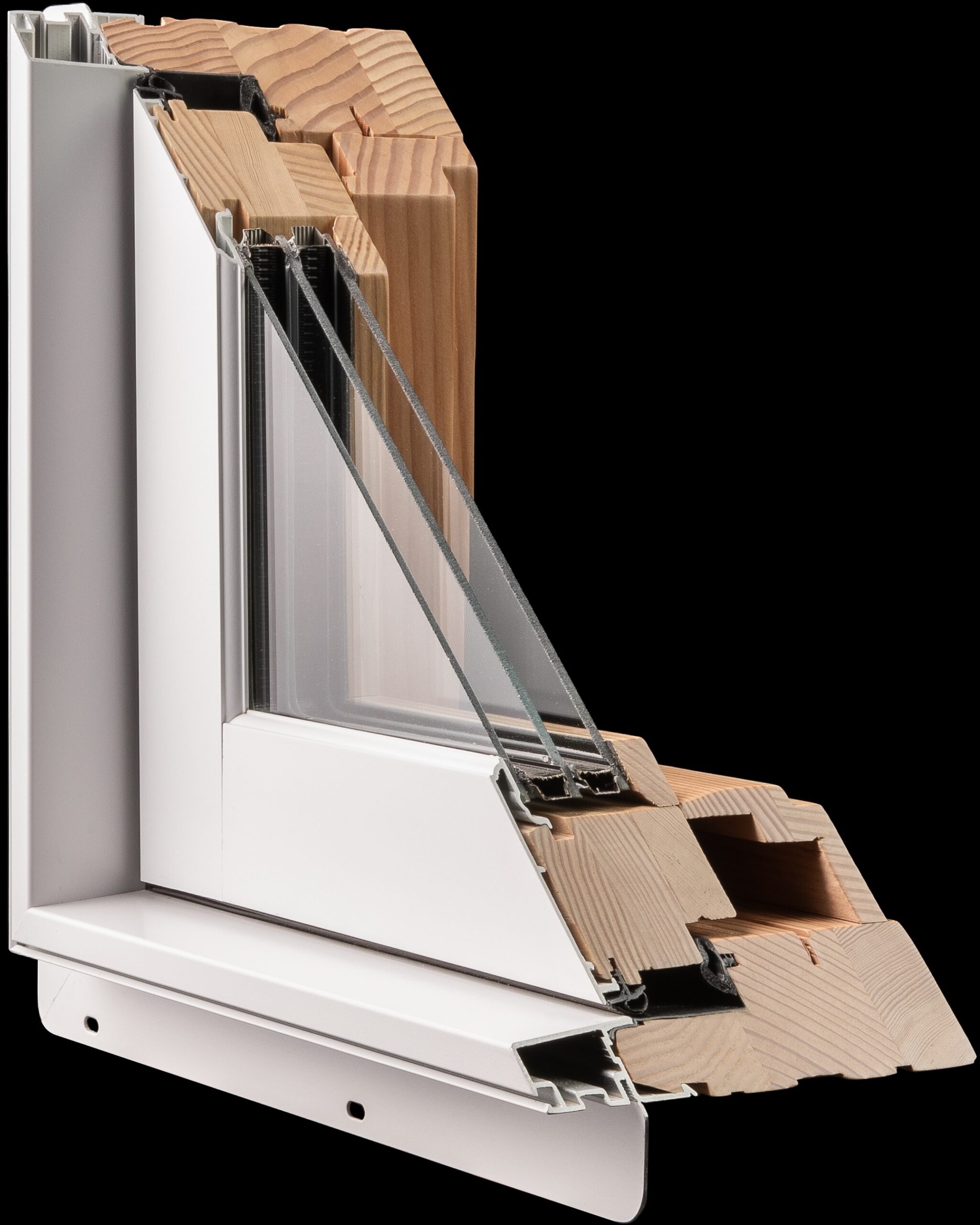

Fundamentals

Our highly customizable product offering is engineered for uncommon strength and durability.

Sash Edge (14)
Authentic Joinery (13)
Thermal Separation (12)
True Triple Glazing (11)
Moldings (10)
Venting Channel (9)
Lamination (8)
Airspace (7)
Weatherstrip (6)
Weatherstrip (5)
Polypropylene Liner (4)
Coastal Douglas Fir (3)
Aluminum Nailing Flange (2)
Extruded Aluminum (1)

14. Sash edge provides a finished look and integrates beautifully with Simulated Divided Lite (SDL) bars.

Hardware

Robust handles, made of authentic materials, that feel as luxurious as they look.

Crank and Cover / Contemporary

Satin Nickel

Matte Black

White

Faux Bronze

  • Satin Nickel
  • Matte Black
  • White
  • Faux Bronze

Crank and Cover / Tango

Satin Nickel

Oil Rubbed Bronze

Matte Black

White

Faux Bronze

Antique Brass

Linen

Brushed Chrome

Polished Brass

  • Satin Nickel
  • Oil Rubbed Bronze
  • Matte Black
  • White
  • Faux Bronze
  • Antique Brass
  • Linen
  • Brushed Chrome
  • Polished Brass

Crank and Cover / Provence

Satin Nickel

Oil Rubbed Bronze

Matte Black

White

Faux Bronze

Antique Brass

Linen

Brushed Chrome

  • Satin Nickel
  • Oil Rubbed Bronze
  • Matte Black
  • White
  • Faux Bronze
  • Antique Brass
  • Linen
  • Brushed Chrome

Pushout / Contemporary

Satin Nickel

Oil Rubbed Bronze

Matte Black

White

Faux Bronze

Linen

Polished Brass

  • Satin Nickel
  • Oil Rubbed Bronze
  • Matte Black
  • White
  • Faux Bronze
  • Linen
  • Polished Brass

Pushout / Traditional

Satin Nickel

Oil Rubbed Bronze

Matte Black

White

Faux Bronze

Antique Brass

Linen

Brushed Chrome

Polished Brass

Rustic Bronze

Unlacquered Brass *Available by Request

  • Satin Nickel
  • Oil Rubbed Bronze
  • Matte Black
  • White
  • Faux Bronze
  • Antique Brass
  • Linen
  • Brushed Chrome
  • Polished Brass
  • Rustic Bronze
  • Unlacquered Brass *Available by Request
