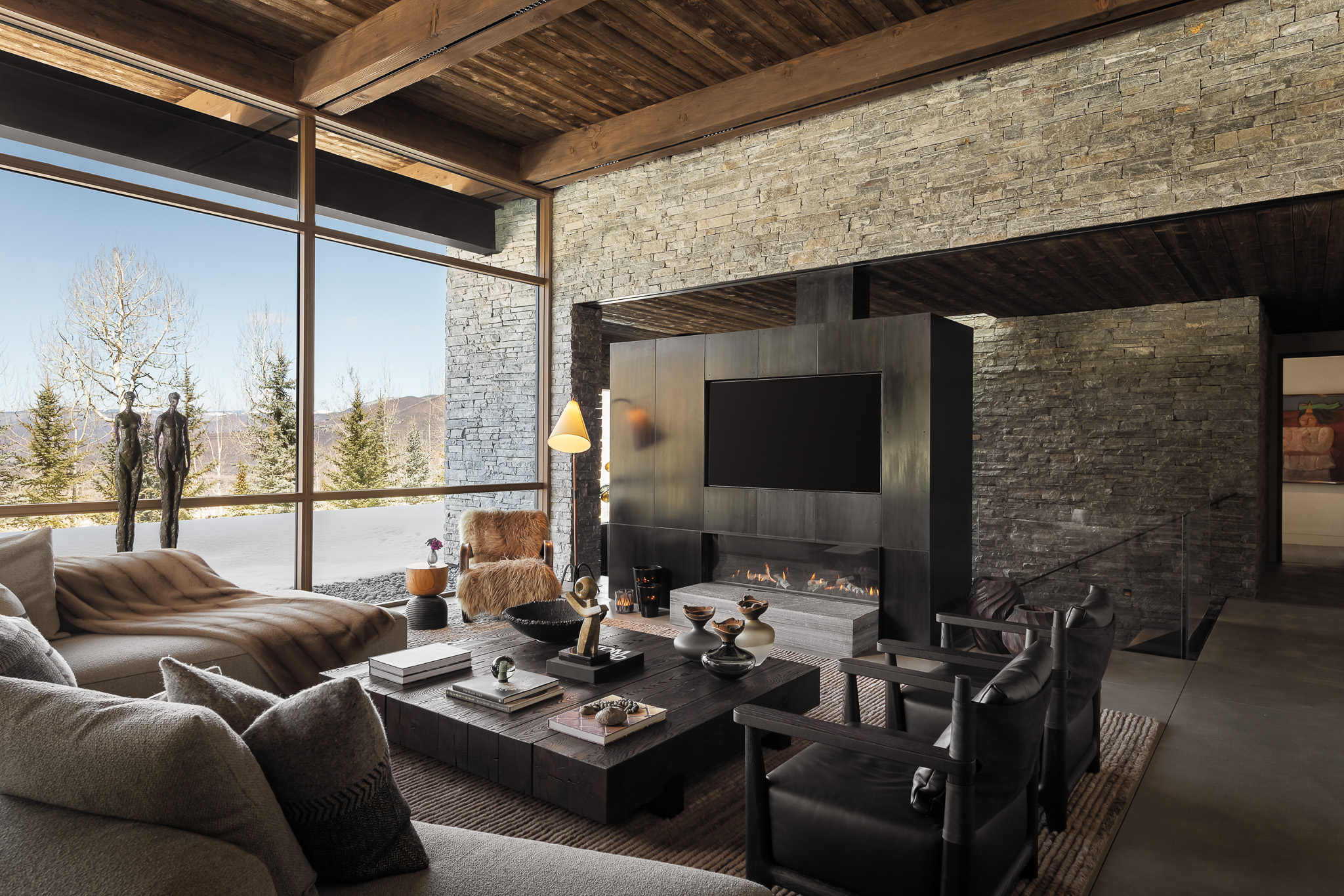

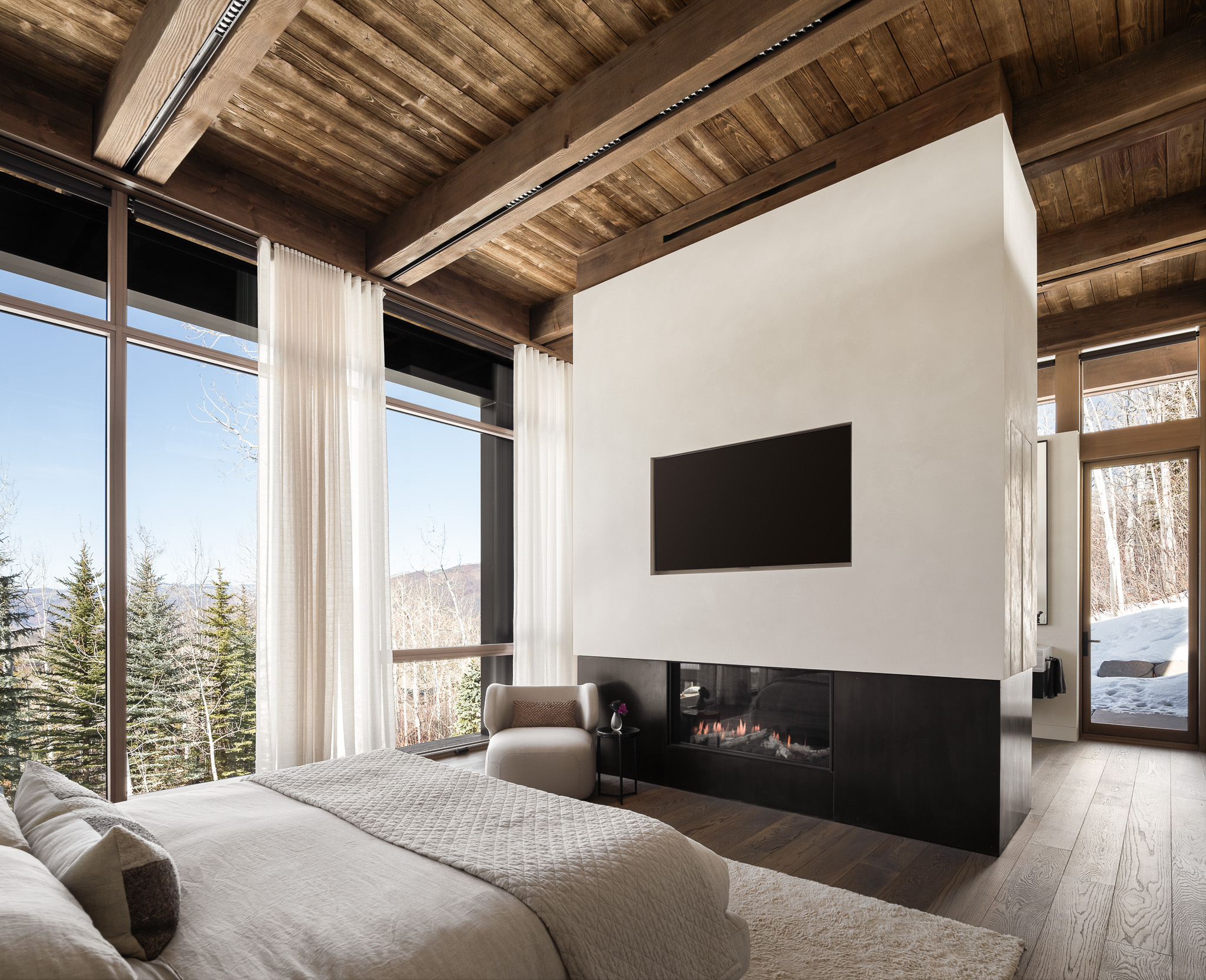

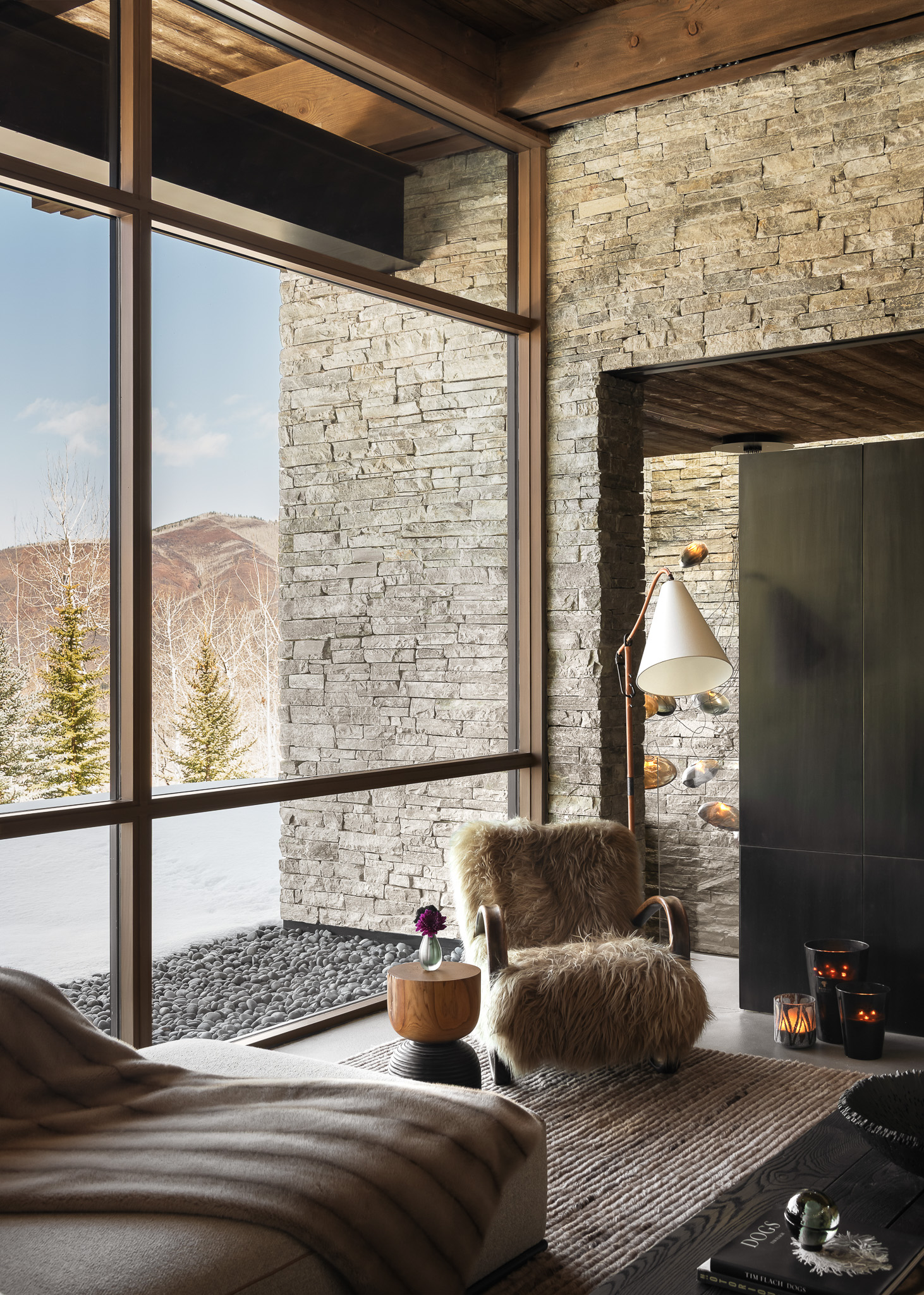

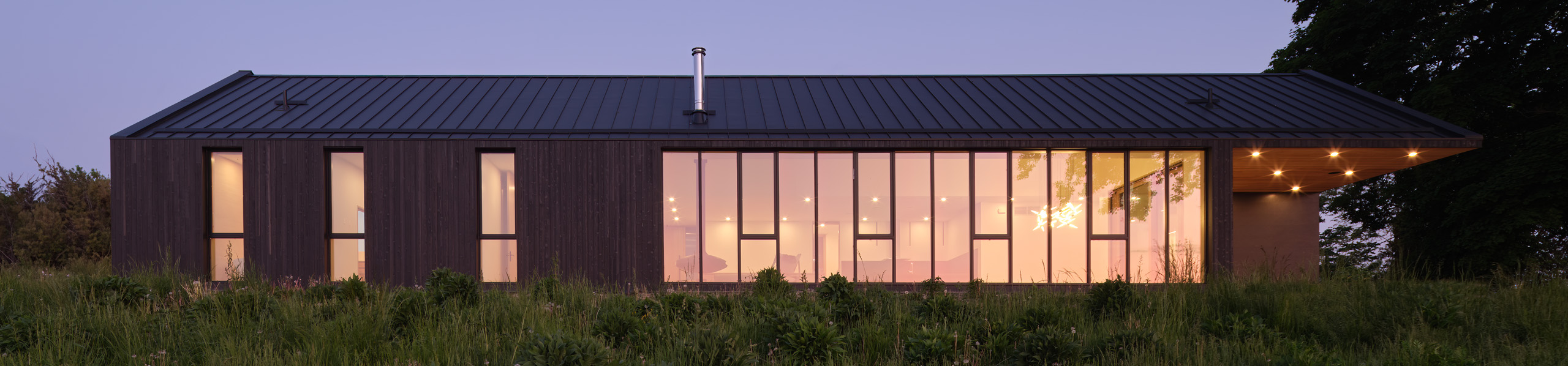

Loewen’s Picture/Direct Set window is the definition of sleek design. These windows maximize views with minimal solid wood framework, resulting in a high-performing product with an unmatched aesthetic.

Picture / Direct Set

Massive sizes, minimal design.

Our Picture/Direct Set is an exterior-glazed platform with a discrete integrated drainage system. The design supports oversized units up to 70 square feet and incorporates optional embedded 1/4″ steel for enhanced structural performance. Rated up to PG65 and certified for HVHZ coastal environments, the system delivers high durability in demanding conditions. Exterior options include our thick extruded aluminum, Cyprium, and all-wood.

Picture / Direct Set

Standard or Contemporary Frame Cladding

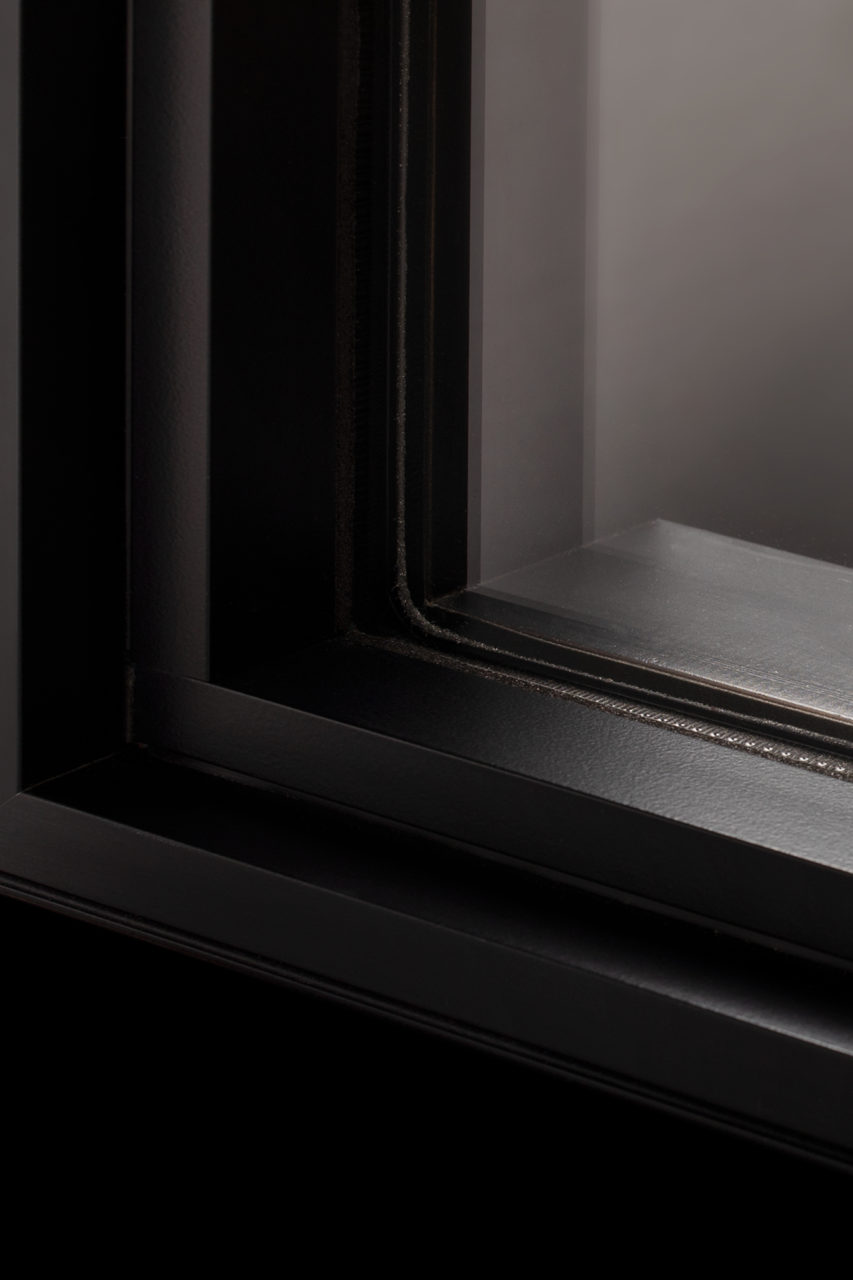

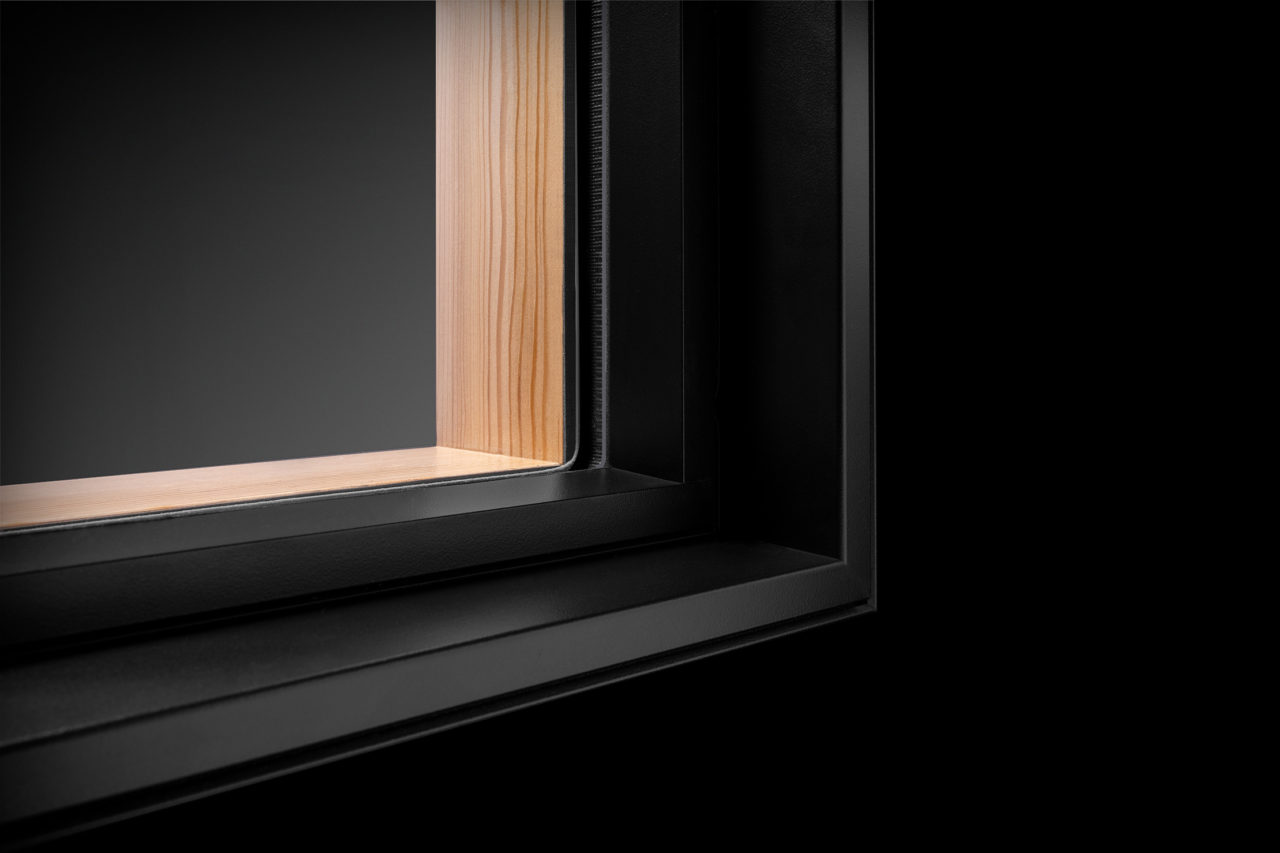

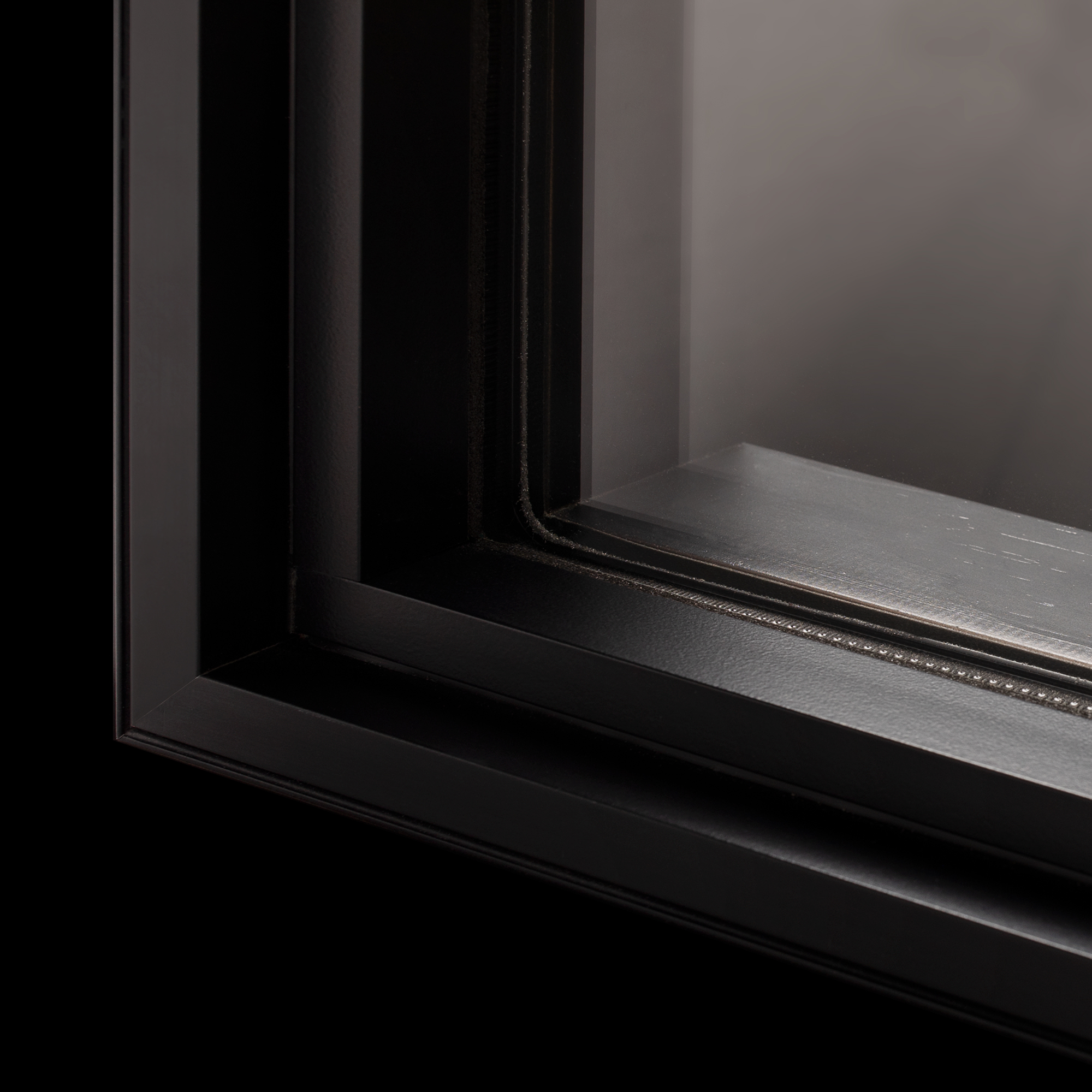

Choose between our Standard 1-1/8″ frame cladding or our minimal 7/8″ Contemporary frame cladding (shown). Our Contemporary frame cladding is well suited for modern drywall returns and the accessory groove can be concealed using our Contemporary casing, creating a truly timeless, minimal aesthetic.

Picture / Direct Set

Massive sizes, minimal design.

Our Picture/Direct Set is an exterior-glazed platform with a discrete integrated drainage system. The design supports oversized units up to 70 square feet and incorporates optional embedded 1/4″ steel for enhanced structural performance. Rated up to PG65 and certified for HVHZ coastal environments, the system delivers high durability in demanding conditions. Exterior options include our thick extruded aluminum, Cyprium, and all-wood.

Picture / Direct Set

Standard or Contemporary Frame Cladding

Choose between our Standard 1-1/8″ frame cladding or our minimal 7/8″ Contemporary frame cladding (shown). Our Contemporary frame cladding is well suited for modern drywall returns and the accessory groove can be concealed using our Contemporary casing, creating a truly timeless, minimal aesthetic.

Related Documents

View All Documents

Window & Door Product Guide

View Guide

Features & Benefits – Picture / Direct Set Windows

View Guide

Contemporary Solutions

View Guide

Metal Clad Colors & Finishes

View Guide

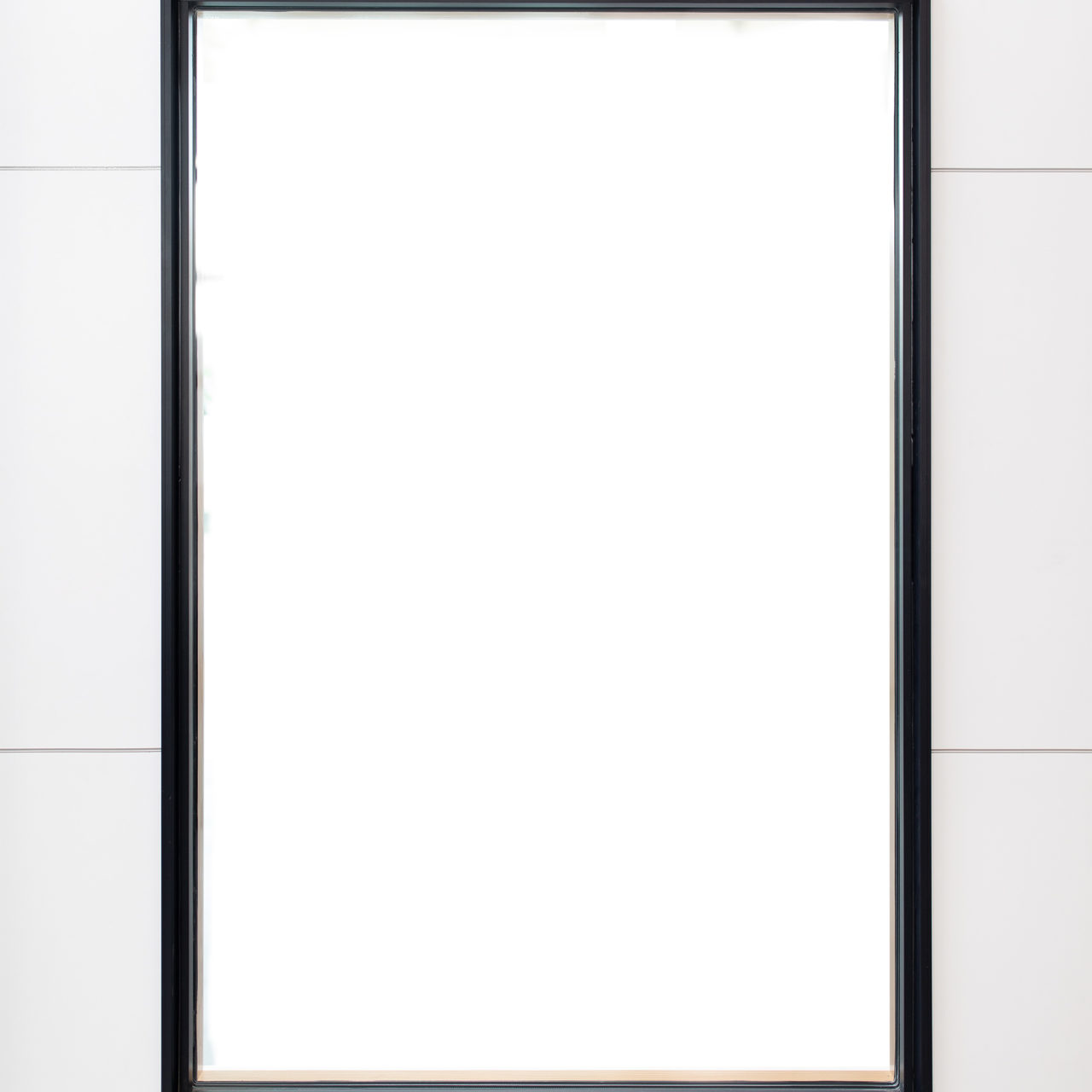

PICTURE/DIRECT SET WINDOWS - Showroom Walkthrough

Loewen Picture Window

Features & Benefits

Exterior Glazed

Exterior glazing eliminates interior stops for a clean, step-free look, serves as a value-engineered alternative to Timber Curtain Wall in combinations, and allows large sealed units to be installed from the building’s exterior.

Discrete Drainage System

This system protects sill and jamb parts while evacuating water efficiently without compromising the exterior aesthetic.

Option for Embedded ¼" Steel

Embedded steel allows combinations to withstand wind loads without increasing mull dimensions, emphasizing the Picture/Direct Set as a value-engineered alternative

Robust Sizes and Configurations

This direct set accommodates 3800 mm jambs vertically or horizontally, limited only by glass size, and features universal frame cladding making this a flexible offering that integrates with other Loewen products.

Contemporary Cladding

Loewen’s contemporary cladding enhances the Picture/Direct Set window, enabling contemporary drywall returns and a lower-profile exterior

Specification Highlight

Sizing

Max Standard 70 sq ft w/ 8mm Glass
(ex. 70‑7/8” x 141‑3/4”)
Min Standard 11‑13/16” x 11‑13/16”

Performance Brief

Performance Grade Up to PG65
Common U-Values .26 (Dual) & .15 (Triple)
Certified HVHZ certified

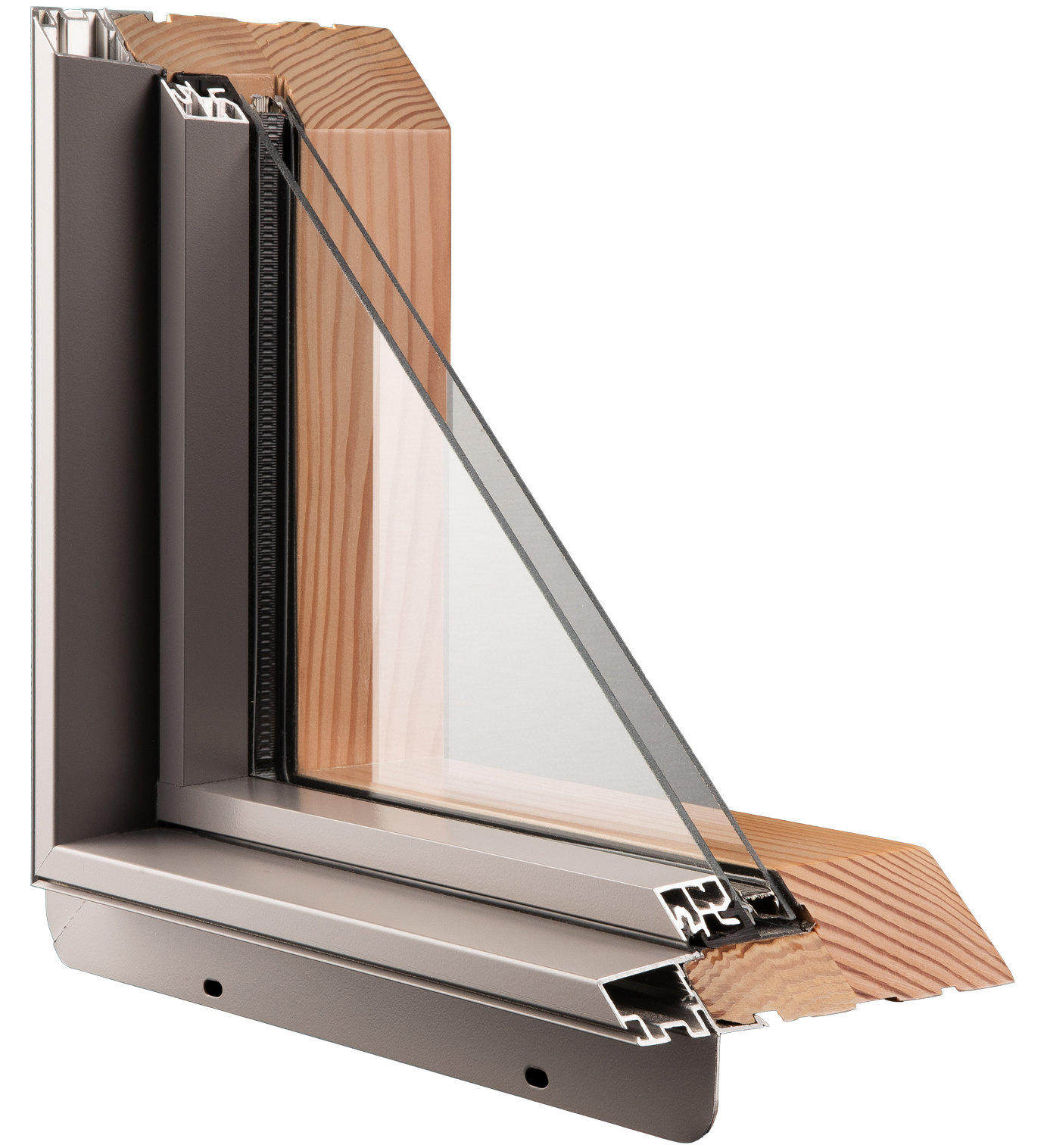

Fundamentals

Our highly customizable product offering is engineered for uncommon strength and durability.

Dual Glazing (7)
Thermal Separation (6)
No Glazing Stops (5)
Lamination (4)
Coastal Douglas Fir (3)
Aluminum Nailing Flange (2)
Extruded Aluminum (1)

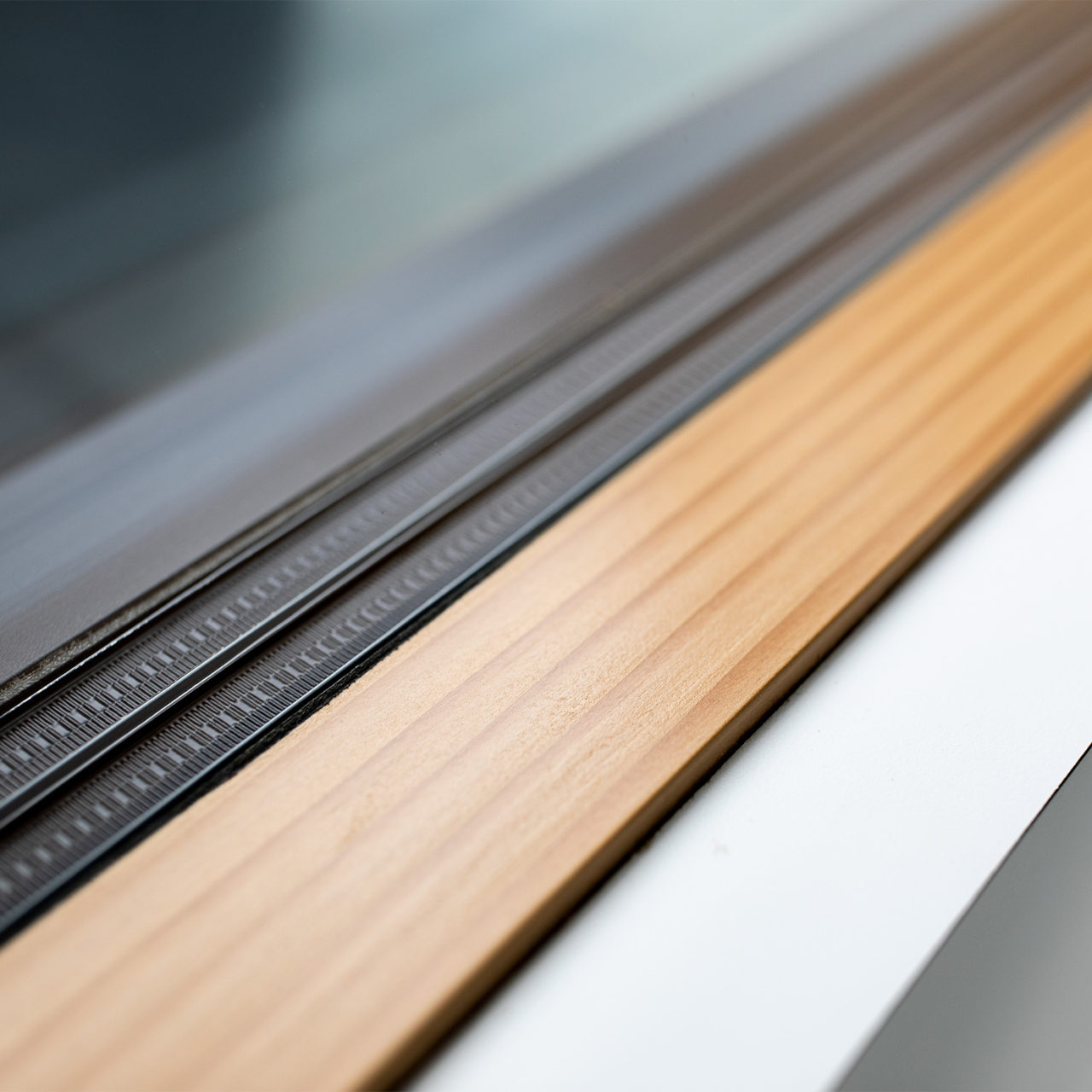

7. 1/2" airspace is the optimum performance-spec when using an Argon Gas fill
