Swinging Doors

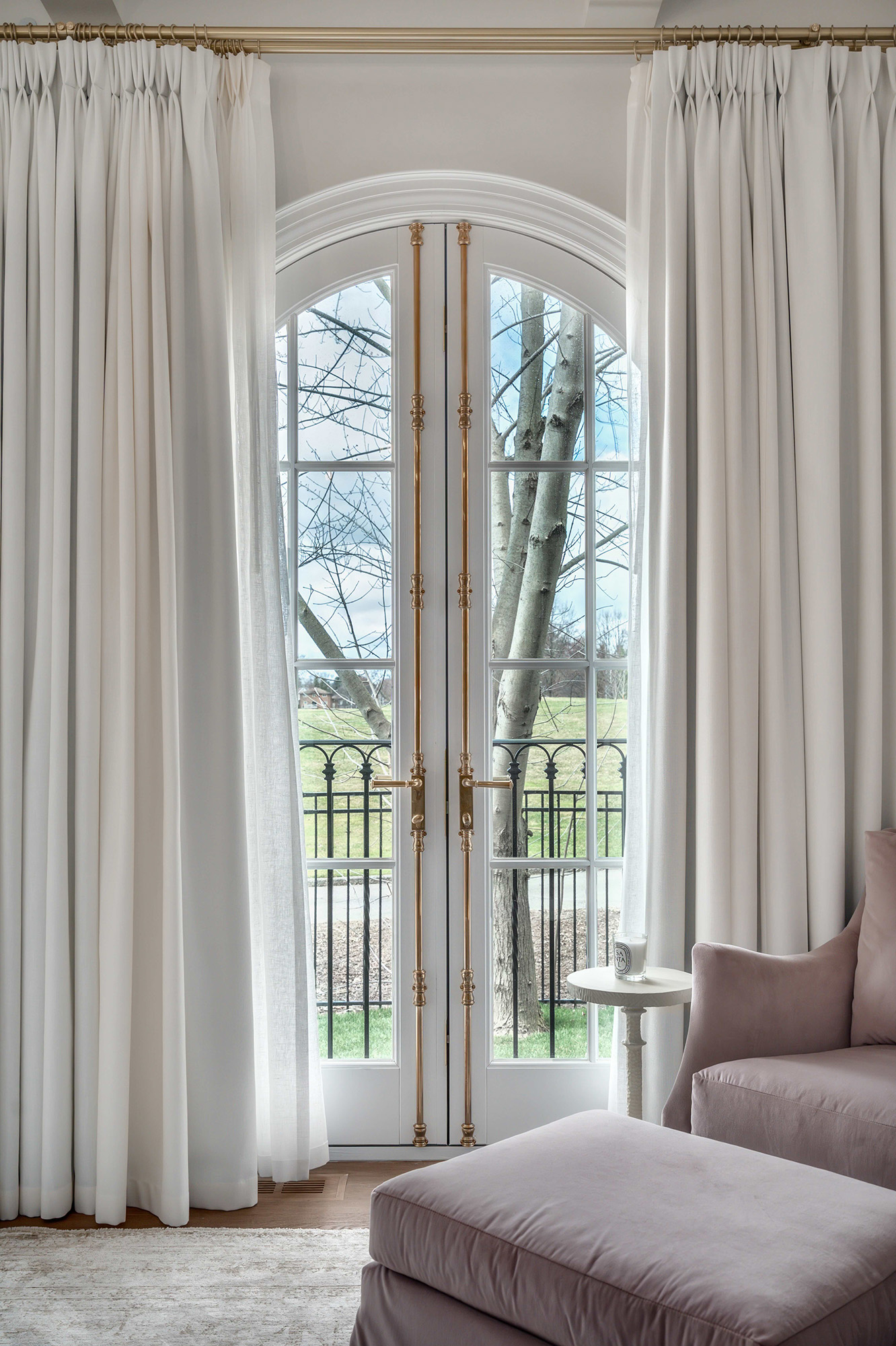

Thanks to our expansive glass areas and sturdy all-wood construction no other hinged door can capture a view as impressive as a Loewen Terrace door. Our vast offering also means there's a door for every design scenario.

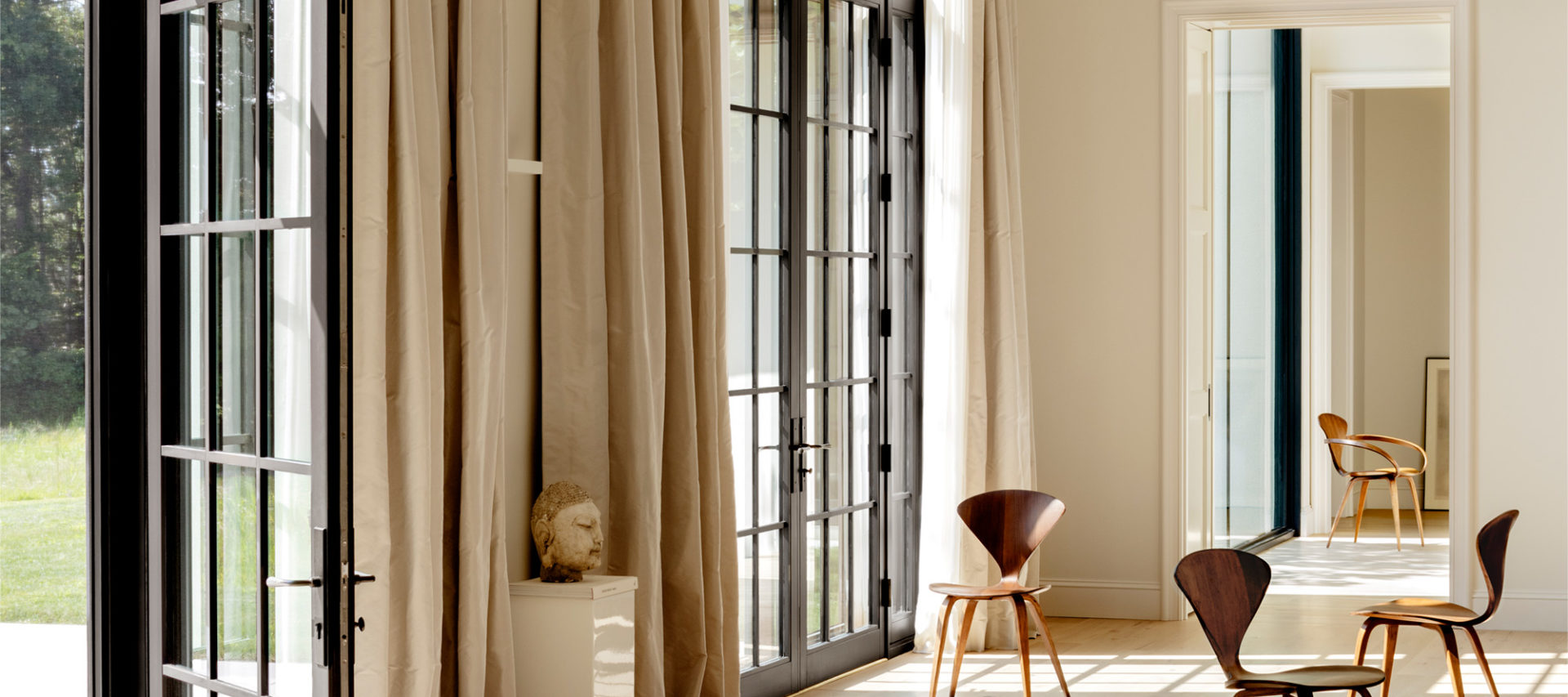

Loewen Terrace & French Doors

High-Performing swinging doors for every architectural scenario.

True to the strategy we implement across all our product lines, the Loewen Swinging Terrace Door offering is vast. Our swinging door program includes everything from one to four doors in a single frame, out-swinging and in-swinging configurations. We regularly produce oversized units, and we offer many radius-top designs in both aluminum-clad and all-wood presentations.

Besides providing a door for every design scenario, our swinging doors are renowned for their performance. Every detail has been designed to the highest performance standards. We’ve reflected on every choice, ensuring all aspects of our doors exceed expectation.

Our Offering

  • Terrace & French Terrace Doors (up to 4 doors in one frame)
  • 1 ¾” Thick Panels & 2 ¼” Thick Panels
  • Aluminum-Clad Doors & All-Wood Doors
  • Radius-Top Doors
  • Inswing & Outswing Configurations
  • Right-Handed, Left-Handed, & Fixed Configurations

Virtual Walk-Through

Watch the video.

The best way to get up to speed on our products is an in-person walk-through with one of our product experts. Since that’s not always possible, we’ve produced some videos to explain operation, features, and options.

Panels & Jambs

Maximizing the potential of natural materials.

Our engineered Coastal Douglas Fir core adds strength and stability to our 1 ¾” and 2 ¼” door panels, as well as our 4 9/16” and 6 9/16” jambs. This also allows us to be good stewards of our material, as we use any less desirable material and/or cut-offs to construct this unseen core. Thick vertical grain skins of beautiful Coastal Douglas Fir hide the engineered core, and (unlike other manufacturers) you’ll never see a lamination interrupting the visible room surface.

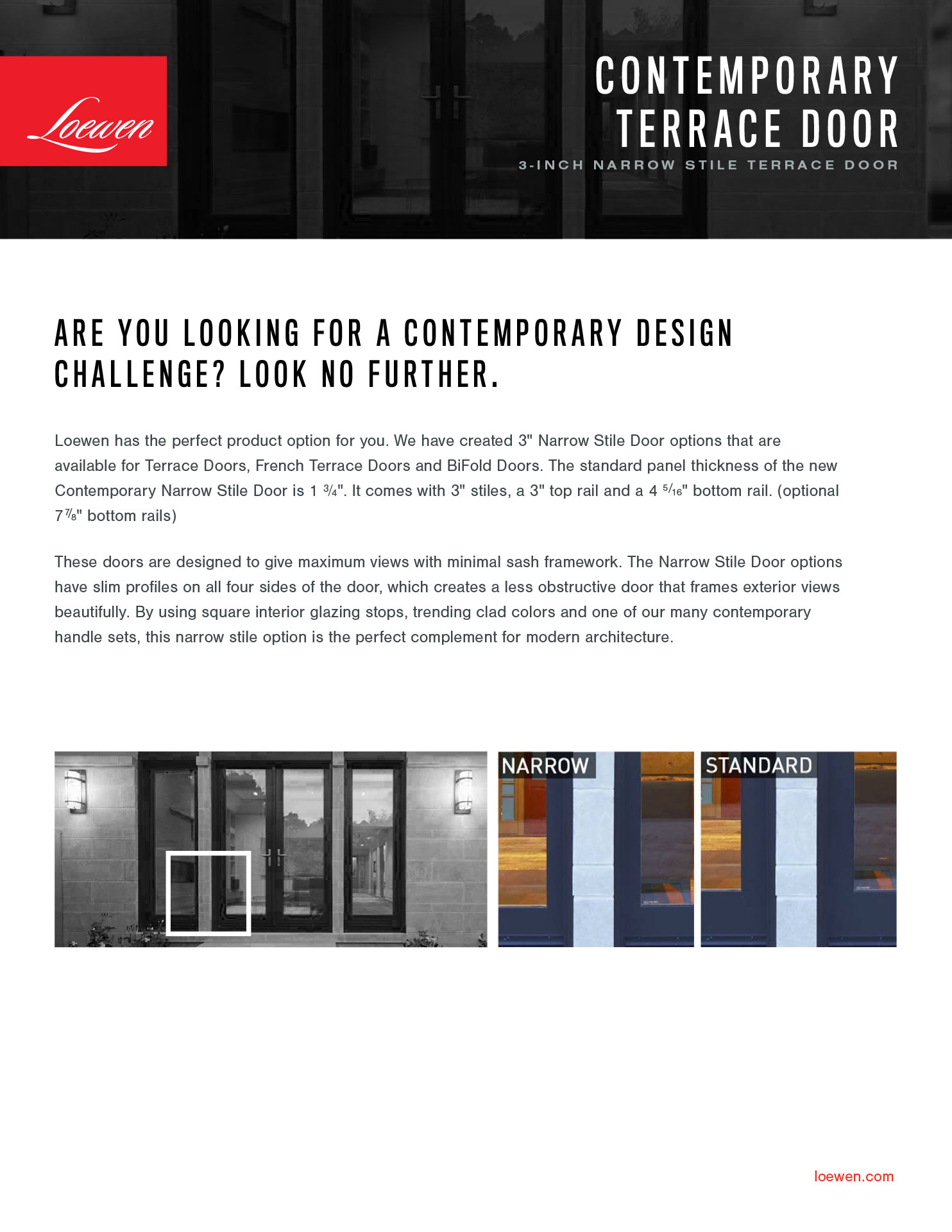

Our narrow stiles and top rail are joined using blind tenons, our standard stiles and top rail are joined using fluted hardwood dowels, both very secure and traditional millwork details. For more contemporary applications we offer 3-inch vertical stiles and top rail with a 4 5/16-inch bottom rail. Conversely, one could choose larger 4 5/16-inch vertical stiles and top rail with a 7 7/8-inch bottom rail.

Our 2 ¼” door program takes our already exceptional swinging door offering to new heights. The added mass and substance of a door this thick needs to be experienced first-hand. These thicker panels add even more strength and stability, an important benefit for some of the larger doors we produce.

The 2 ¼” panels also allow us to include True Triple glazing without surface-mounted glazing stops, adding to the renowned performance of these doors. We’ve also moved the weatherstrip from the frame to the panel itself. The weatherstrip on the rabbeted panel is one continuous length, meaning you have fewer seams to potentially compromise seal against water and air infiltration.

Features

  • 2 ¼” thick panels or 1 ¾” thick panels
  • 4 9/16” jambs or 6 9/16” jambs
  • Engineered Coastal Douglas Fir core
  • Stiles and rails are joined using blind tenons or fluted hardwood dowels
  • Thick vertical grain skin, no laminations interrupting the visible room surface
  • Narrow Stile & Rail Option with 3” vertical stile & top rail, and 4 5/16 bottom rail
  • Standard Stile & Rail Option with 4 5/16 vertical stile & top rail, and 7 7/8 bottom rail
  • 2 ¼” doors include continuous length of panel-mounted weatherstrip

New 2 1/4" Inswing Doors

New Release

Hop over to our Catalogs page and learn more about our new 2 ¼” Metal-Clad Inswing door.

Glazing & Glazing Appointments

Carefully spec’d sealed units and beautiful aesthetics.

Sealed units are built with 4mm (just over 1/8”) thick glass. This offers greater strength and clarity over thinner glass, making our products more insulative, more soundproof, more resistant to impact, and considerably more resistant to stresses caused by fluctuations in temperature. We also use full 1/2″ airspaces filled with Argon gas, in both our dual glazed and True Triple glazed sealed units. These carefully selected specifications are improved further by using LowE window systems.

Square, Putty, and Ogee glazing stops are all available. Glass panels can be decorated with architecturally correct grille patterns complete with airspace grilles. Our black stainless-steel spacer bars are less conductive than aluminum and structurally superior to silicone foam spacers.

Features

  • 4mm thick glass
  • Argon gas airspace fill
  • True Triple glazing available on 2 ¼” doors
  • Dual glazing with full ½” airspaces available on all doors
  • High-performing LowE window systems
  • Square, Putty, or Ogee glazing stops
  • Architecturally correct grille patterns with airspace grilles
  • High-performing black stainless-steel spacer bars

Glazing

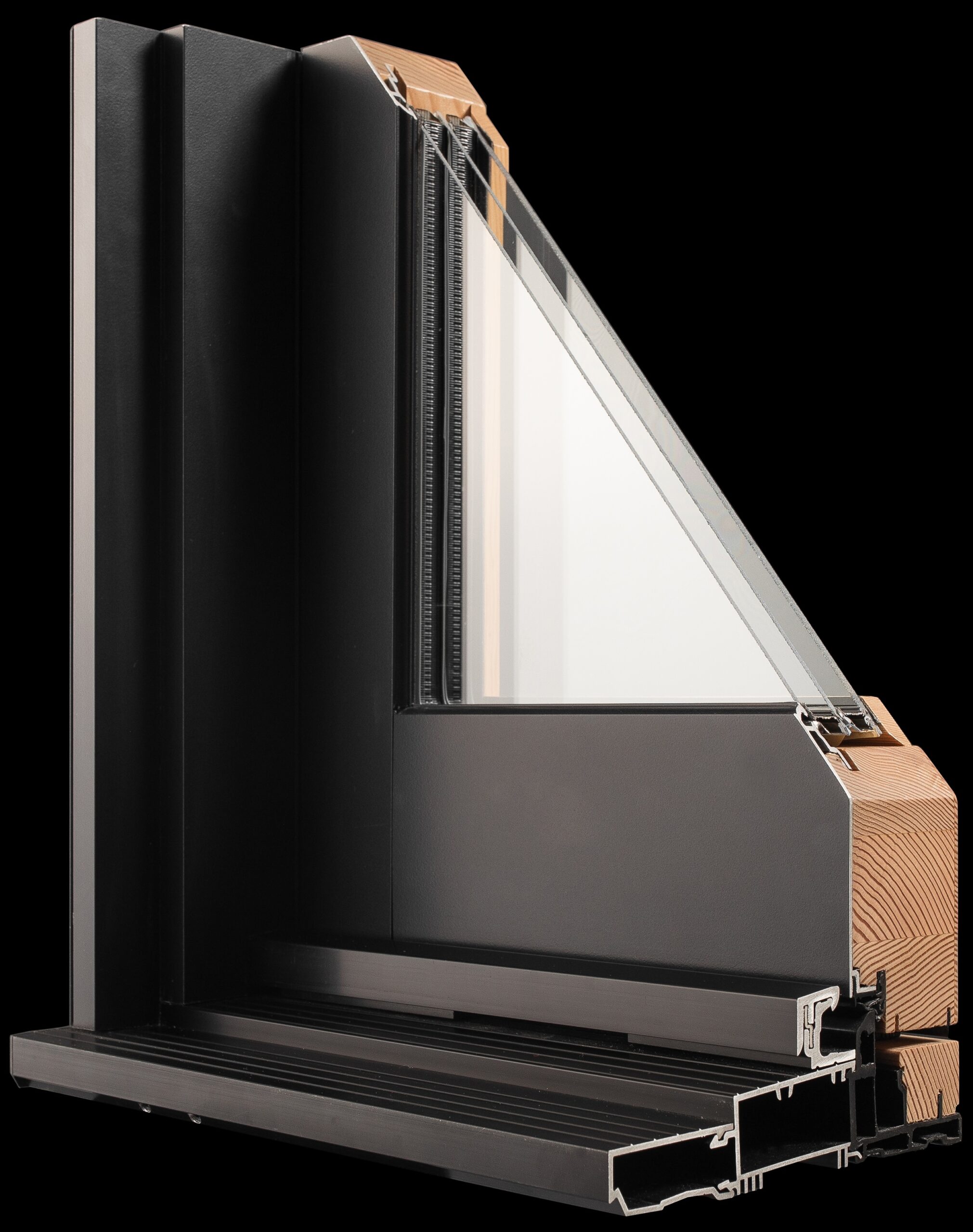

True Triple Glazing

Our thick 2 1/4″ panels allow for True Triple Glazing (including full 1/2″ airspaces) without needing surface-mount glazing stops.

Glazing

Dual Glazing

Often our dual glazing offers more than enough energy performance.

High Performance Sills

A meticulously designed drainage system.

Our swinging Terrace doors include our standard bronze anodized sill made of a thick extruded aluminum. On most of our sills the extruded aluminum is thermally separated from a Coastal Douglas Fir substrate, with the sill designed to allow surface-draining of water. Our 2 ¼” inswing sill replaces the Coastal Douglas Fir substrate with polyamide, and also includes a splash guard and superb drainage using a positive/negative pressure ball-valve system.

Swinging Doors

Sills

Loewen sills are meticulously designed, this inswing sill on our Metal-Clad 2 ¼” door attests to that fact.

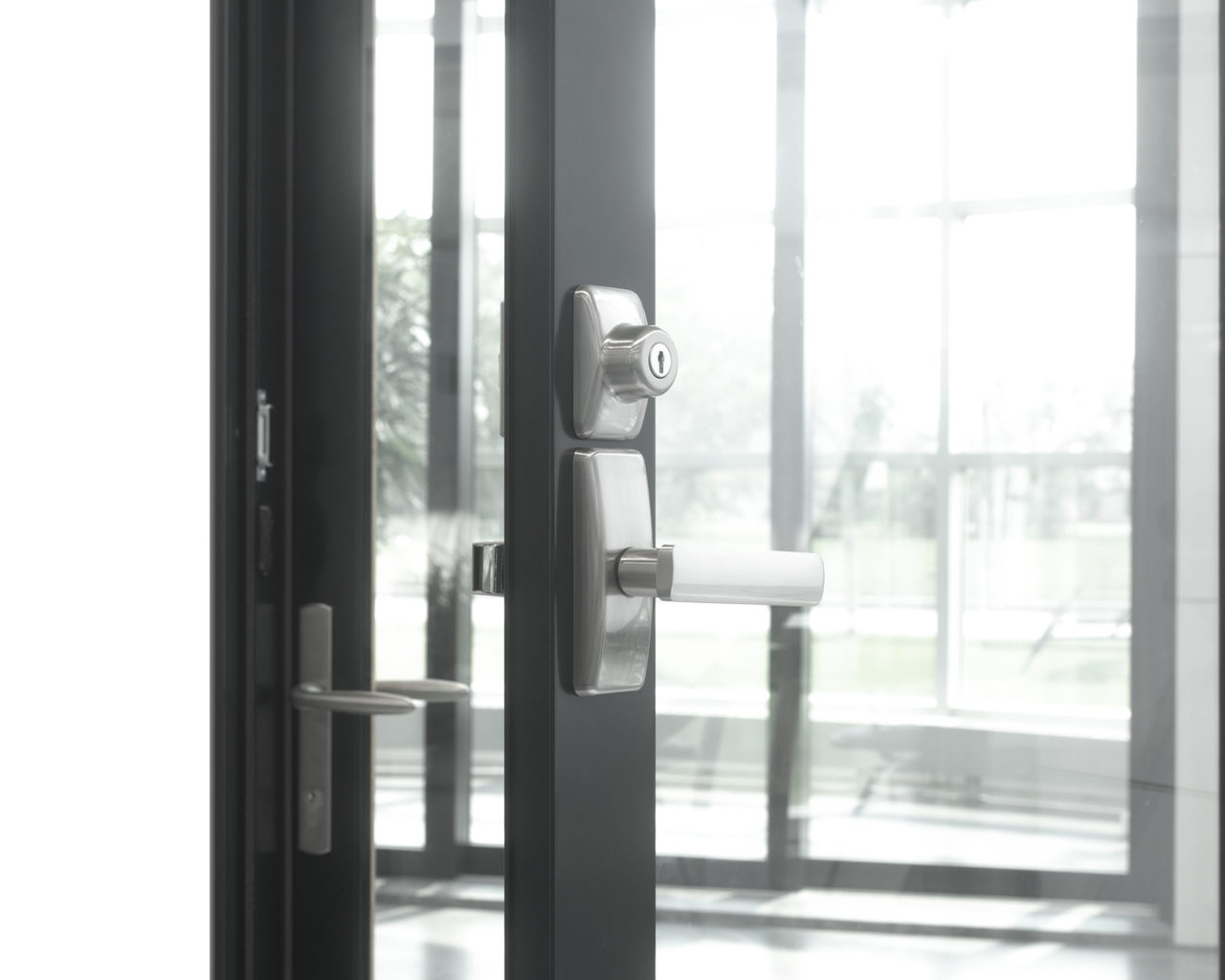

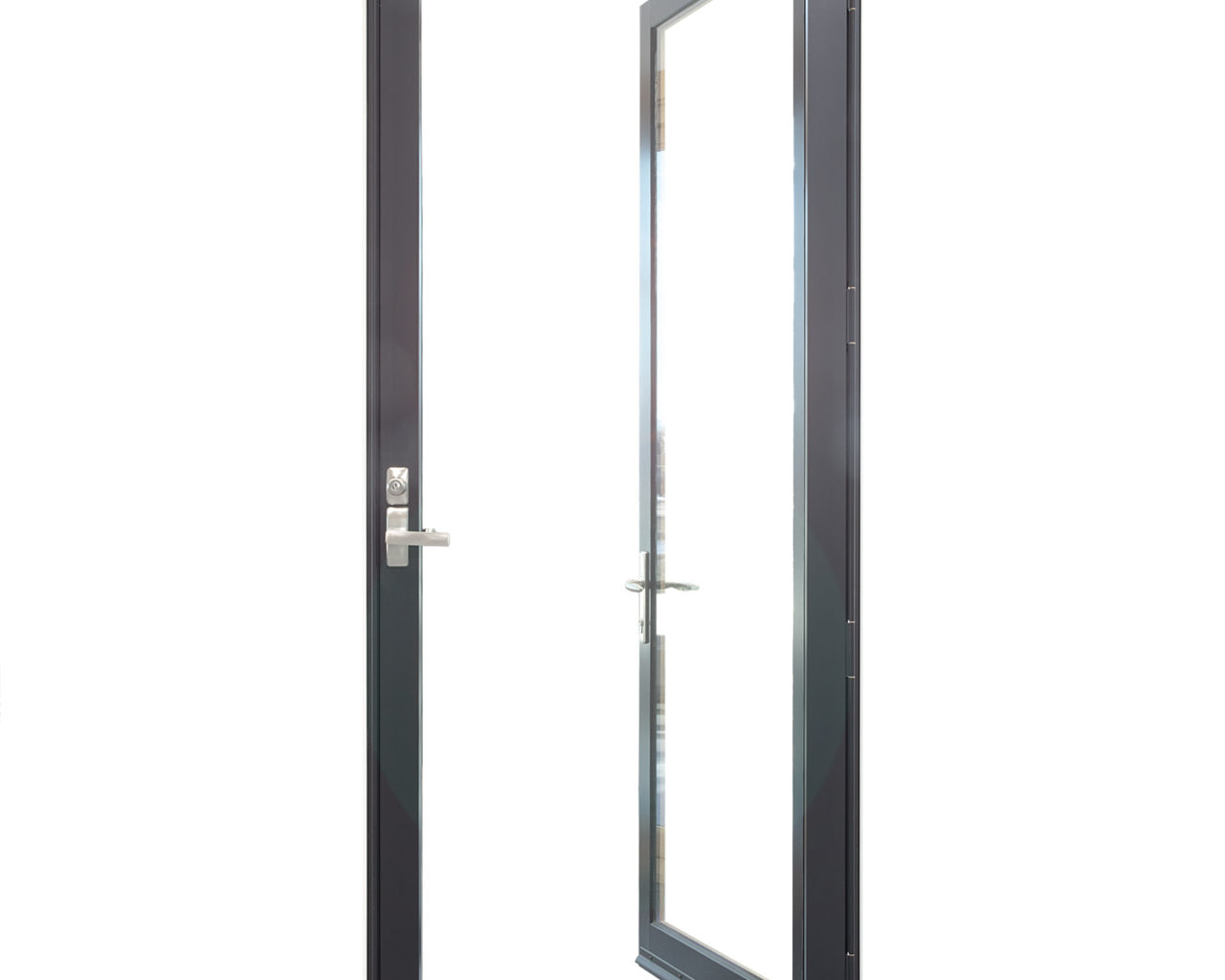

Screen & Storm Doors

To Complement Loewen Swinging Doors

Our premium swinging screen door complements our line of Swinging Terrace and French Doors. The screen door can be ordered for clad and all wood doors and is also available as a retrofit into any existing Loewen door frame.

Loewen has taken the functional screen door and designed a robust and clean aesthetic to enhance swinging terrace door entryways.

This is a complete door offering available in all current Loewen clad colors in an AAMA 2605 specification and all anodized finishes to match our doors and frames. Hinge assemblies are also color matched.

The removable standard screen panel is easily replaced with the optional storm panel for increased protection from the elements.

Large sizes are available – up to 3135 mm (123 7/16”) tall with screen only option. Narrow stile and rail dimensions of 2 7/8” allow for maximum openings. The strong construction allows the frame to be built without a bottom kick panel.



Storm & Screen Doors

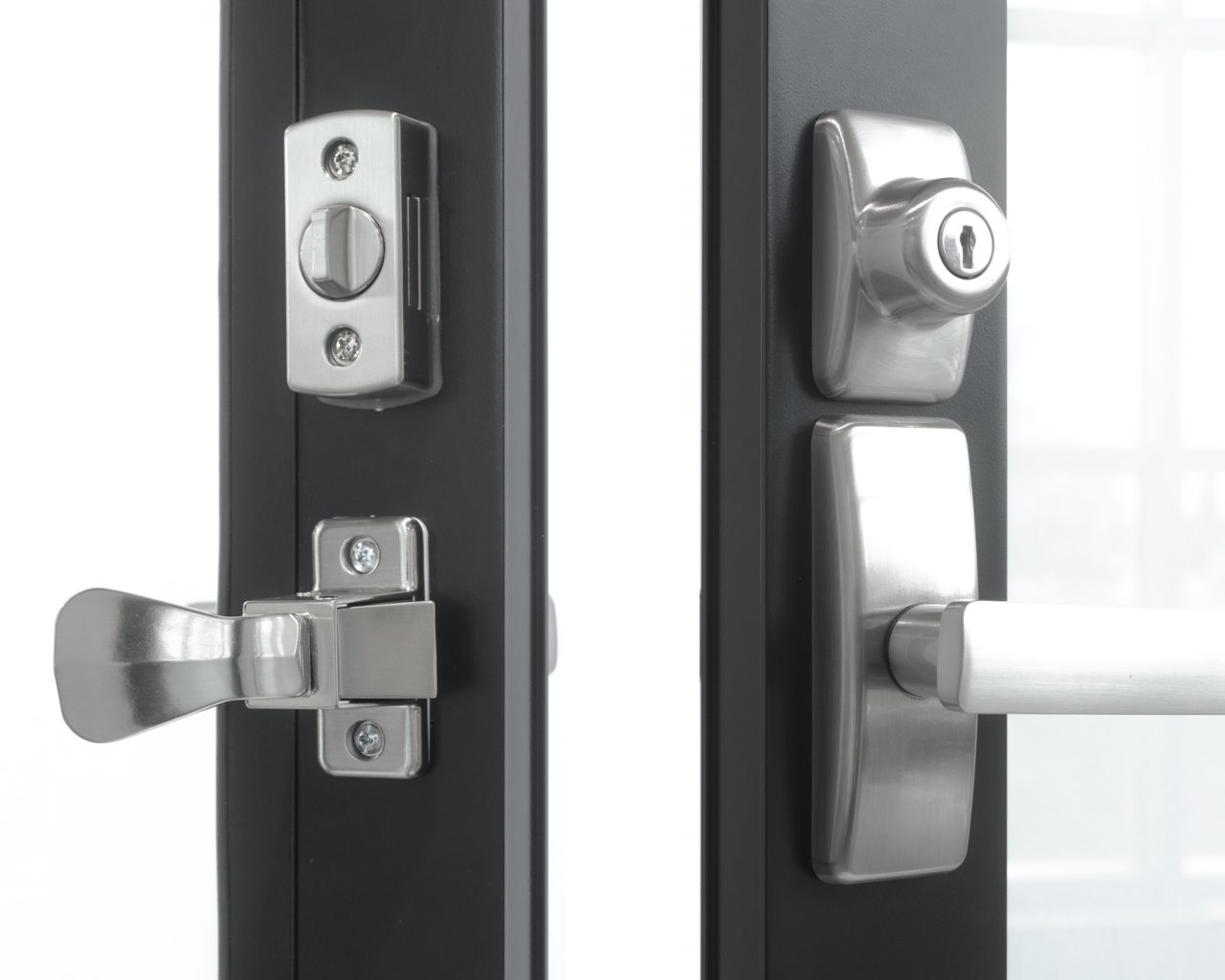

Tampa Handle

Our Tampa swinging screen door handle comes standard with a deadbolt. We also offer our Concord swinging screen door handle.

Storm & Screen Doors

Glass Storm Panels

The screen panel can be removed and replaced with a glass panel for better protection against adverse weather.

Storm & Screen Doors

Self-Closers

Our Screen & Storm doors automatically come with a pair of self-closers. This system includes hold-open functionality.

Hardware

High quality handle sets and multipoint gear systems.

Multipoint locking hardware — complete with brass handle set and escutcheon — and dead bolt are standard on all Terrace Doors. The Hoppe HLS9000 multipoint gear system (including head and sill shoot bolts) are used on all 2 ¼˝ doors. An additional lock point, closer to the top of the panel, is standard on OSM frame heights starting at 2331mm (91 ¾˝).

Our robust hardware is constructed from solid metal including bronze, brass, or steel allowing for oversized units. Multiple hardware type and finish choices are available.

Terrace Door / Dallas

Dark Bronze Metallic

Matte Black

Polished Brass

Satin Nickel

Rustic Umber

  • Dark Bronze Metallic
  • Matte Black
  • Polished Brass
  • Satin Nickel
  • Rustic Umber

Terrace Door / Meran

Antique Brass

Brushed Chrome

Matte Black

Oil Rubbed Bronze

Polished Brass

Satin Nickel

  • Antique Brass
  • Brushed Chrome
  • Matte Black
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Nickel

Terrace Door / Rodos

Satin Nickel

Antique Brass

Brushed Chrome

Matte Black

Oil Rubbed Bronze

Polished Brass

  • Satin Nickel
  • Antique Brass
  • Brushed Chrome
  • Matte Black
  • Oil Rubbed Bronze
  • Polished Brass

Terrace Door / Sand Cast Bronze

Churchill Rustic Bronze

Shropshire Rustic Bronze

  • Churchill Rustic Bronze
  • Shropshire Rustic Bronze

Terrace Door / Verona

Antique Brass

Brushed Chrome

Matte Black

Oil Rubbed Bronze

Polished Brass

Satin Nickel

  • Antique Brass
  • Brushed Chrome
  • Matte Black
  • Oil Rubbed Bronze
  • Polished Brass
  • Satin Nickel
